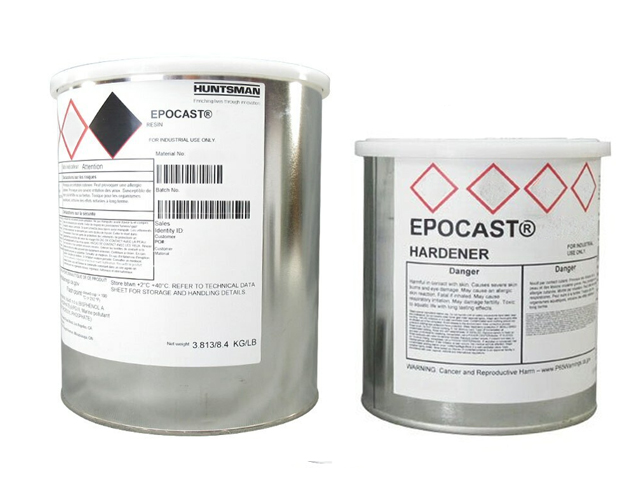

EPOCAST 1648 A/B

Compare
SKU: HU1648A00
Applications
Huntsman EPOCAST 1648 A / B is a two-pack, low-density, two-pack epoxy syntactic paste. The EPOCAST 1648 A / B is mainly intended for aerospace applications such as gluing inserts (injection possible in a 3mm hole), edging, gluing and folding radius fills in nest sandwich structures. bee. The EPOCAST 1648 A / B meets the aeronautical qualifications according to the specification: BMS5-28 Type 18 Class 1 - SPEC. BOE00143.
Caracteristics
Color: White / Viscosity: pasty (1648 A: Pasty -1648 B: Pasty) / Density: 0,65 - 0,7 / Gel-Time: 18 min (at 25°C) / Cure time: 3 days at 23°C or Gel-Time + 5h at 52°C / Self-extinguishing time (12s vertical) FAR 25.853 : < 5s / Compressive module: 2,4 Gpa at 23°C / Compressive stregth : 50MPa à 23°C / Insert pull-out strength : 1,8kN / Insert torque strength : 13,6 Nm / shear strength: 12 MPa at 23°C (afters 2h curing at 70°C).
Property
Huntsman EPOCAST 1648 A / B is a self-extinguishing low density paste (FST). It is applied manually, with a spray gun or with a dispensing machine and does not run after application. EPOCAST 1648 A / B adheres rapidly at room temperature (18min Gel Time) and offers excellent mechanical performance after complete curing (7 days at 25°C or 5h at 52°C after gelation). Mix ratio of EPOCAST 1648 A / B: 100/20. EPOCAST 1648 A / B does not contain any SVHC substance defined under REACH.
Dangereux. Respecter les précautions d'emplois
See the different packaging

Variations

This product is not available online.Contact us
Name Code article Price Availability
EPOCAST 1648 A/B
6 oz Semco Cartridge
HU5565 Contact us
EPOCAST 1648 A/B
236,2 Lbs Kit : 9 x (21,8 Lbs Part A) + 1x (40 Lbs Part B)
HU5566 Contact us

Caracteristics

Viscosity Class Pasty / Putty
Application Methode Dispensing, Manual
Curing Type Room Temperature Curing
Certification / Specification BMS 5-28, Type 18, BMS 5-28, Type 18, Class 1, FAR 25.853, FAR 25 Part F
Density 0.65 kg_l
Chemistry / Technology Epoxy
Brand EPOCAST
Color White
Product's associated market Aeronautics
Compression Strength (MPa) 50 MegaPa
Mix Ratio 5/1
Hardness Class Very Hard (Shore D56 - D100)
Markets - Where is used the product ? Aeronautics Interior Adhesives / Sealant
Number of Component Bi Componant / 2 Parts
Price Unit Pieces
Minimum temperature (°C) 18 CELSIUS
Tensile Strength (Mpa) 14.1 MegaPa
