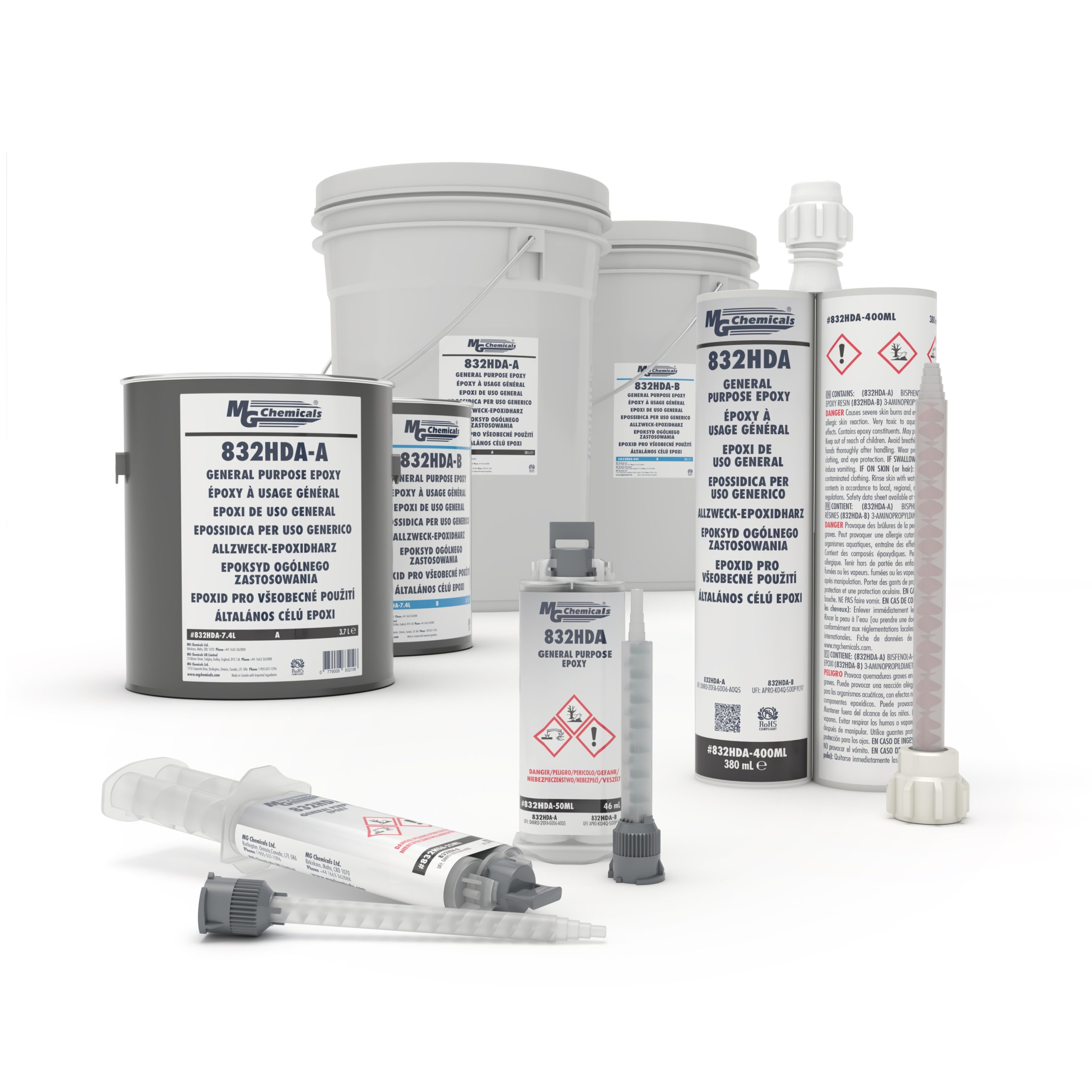

MG CHEMICALS 832 HDA

Compare
Applications
MG CHEMICALS 832 HDA is a versatile electronic encapsulating compound. This product is primarily used for: The protection of printed circuit boards and electronic assemblies. The electrical insulation of sensitive components. Protection against static discharge, vibrations, and abrasion. Protection against thermal shocks and environmental humidity. Waterproofing against saltwater and fungi. Resistance to many aggressive chemicals.
Caracteristics
Two-component epoxy / Ratio: 1:1 / Mixture viscosity: 4100cP / Service temperature range: -40°C to +150°C / Curing time: 60 min at 65°C / Hardness: Shore D.
Property
MG CHEMICALS 832 HDA is a two-component black compound with low viscosity once mixed, allowing for easy penetration into small spaces. Excellent electrical insulation characteristics. Extreme resistance to water and moisture (allows for immersion if necessary). Solvent-free.
Dangerous. Observe safety precautions - For professional use only
See the different packaging

Variations

This product is not available online.Contact us
Name Code article Price Availability
MG CHEMICALS 832 HDA
40 L Kit
MG832H030 Contact us
MG CHEMICALS 832 HDA
400 ml Cartridge
MG832H020 Contact us
MG CHEMICALS 832 HDA
7.4 L Kit
MG832H050 Contact us
MG CHEMICALS 832 HDA
25 ml Cartridge
MG832H010 Contact us
MG CHEMICALS 832 HDA
50 ml Cartridge
MG832H040 Contact us

Caracteristics

Application Methode Automatic, Manual
Curing Temperature (°C) 65 CELSIUS
Curing Time (min) 60 MINUTE
Curing Type Hot Curing
Chemistry / Technology Epoxy
Dielectric Strength (kV/mm) 16 kV_mm
Brand MG CHEMICALS
Color Black
Mix Ratio 1/1
Hardness Class Hard (Shore A81 - A100 / Shore D35 - D55)
Hardness 81 Dshore
Electric Properties Electrically Insulating
Number of Component Bi Componant / 2 Parts
Maximum temperature (°C) 140 CELSIUS
Minimum temperature (°C) -50 CELSIUS
Glass transition (Tg) (°C) 53 CELSIUS
Thermal Conductivity (W/m⋅K) 0.2 WmK
Dynamic Viscosity (25°C) 2100 mPas
