AIRTECH IPPLON® DPT1000

Compare
Applications

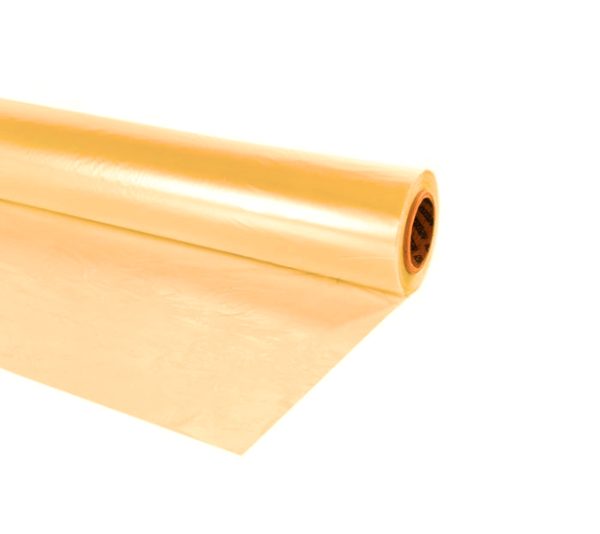

Ipplon® DPT1000 is high-temperature nylon films for curing temperatures up to 246°C (475°F). They can be used when high temperatures and pressures are required. These are the recommended materials for curing with phenolic resins.

Caracteristics

• Heat resistance ensures vacuum safety during high-temperature curing.

• Good elongation prevents the formation of bridges in corners, which can cause bag swelling or excess resin.

• High chemical resistance reduces the risk of bag rupture with aggressive phenolic resins.

Property

Material type : Nylon
Elongation at break : 375 %
Tensile strength : 62 MPa
Maximum use temperature : 246°C
Flammability (self extinguishing) : Yes
Materials to avoid : Strong oxidizers
Colour : Orange

Dangerous. Observe safety precautions - For professional use only
See the different packaging

Variations

This product is not available online.Contact us
Name Code article Price Availability
AIRTECH IPPLON® DPT1000
Roll 50µ x 1,52m x 305m
AT1000 Contact us
AIRTECH IPPLON® DPT1000
Roll 50µ x 3,05m x 305m
ATDPT1001 Contact us

Caracteristics

Chemistry / Technology Polyamid (Nylon / Aramid)
Brand AIRTECH
Color Orange
Elongation at break (%) 375.0000
Resin Compatibility Bismaleimide (BMI), Epoxy, Polyester / Vinylester, Polyurethane
Process Product Type Bagging Films
Maximum temperature (°C) 246 CELSIUS
Tensile Strength (Mpa) 62 MegaPa
