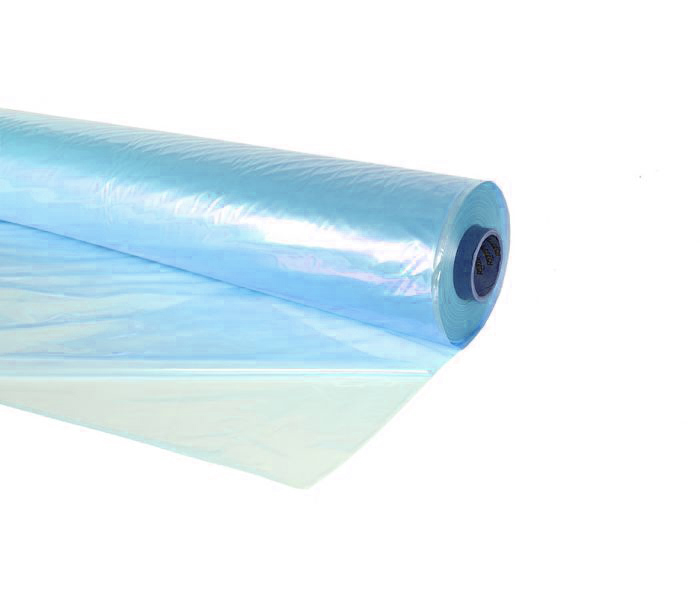

AIRTECH IPPLON® WN1500

Compare
Applications
Ipplon® WN1500 films are high-temperature nylon films for curing temperatures up to 246°C (475°F). They can be used where high temperatures and pressures are required. They are recommended for curing with phenolic resins.
Caracteristics
• Heat resistance ensures vacuum safety during high-temperature curing.
• Good elongation prevents corner bridging, which can lead to bag bulges or resin overflow.
• High chemical resistance reduces the risk of bag rupture with aggressive phenolic resins.
Property
Material Type: Nylon
Elongation at Break: 375%
Tensile Strength: 62 MPa
Maximum Operating Temperature: 246°C
Flammability (Self-extinguishing): Yes
Materials to Avoid: Strong oxidizing agents
Color: Blue
Dangerous. Observe safety precautions - For professional use only
See the different packaging
Request for quotation
Request for information
Contactez-nous par téléphone au 04 26 680 680

Variations

This product is not available online.Contact us
Name Code article Price Availability
AIRTECH IPPLON® WN1500
Roll 50µ x 1,016m x 305m
AT5516 Contact us
AIRTECH IPPLON® WN1500
Roll 50µ x 1,52m x 305m
AT18125 Contact us

Caracteristics

Chemistry / Technology Polyamid (Nylon / Aramid)
Brand AIRTECH
Color Blue
Elongation at break (%) 375.0000
Resin Compatibility Bismaleimide (BMI), Epoxy, Polyester / Vinylester, Polyurethane
Process Product Type Bagging Films
Maximum temperature (°C) 246 CELSIUS
Tensile Strength (Mpa) 62 MegaPa
Thickness 50 MICROMETER
