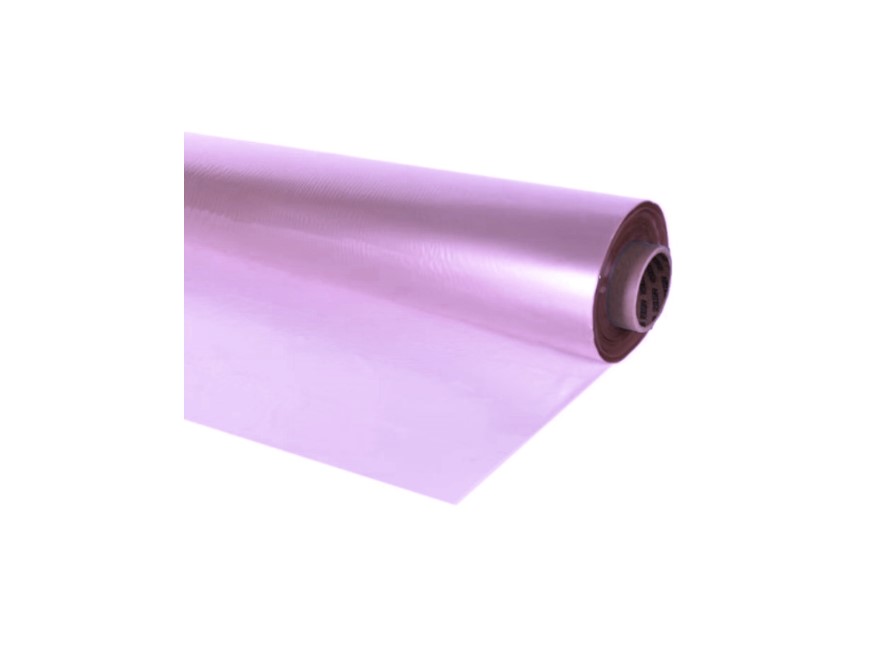

AIRTECH SECURLON® V-45

Compare

Applications

Securlon® V-45 is designed for commercial applications requiring high-temperature, high-pressure curing cycles. It is ideal for high-performance automotive applications requiring autoclave processing, as well as vehicle interiors commonly using phenolic prepregs.

Caracteristics

• Reduce blown bag waste with this phenol-resistant bag film.

• Its good elongation reduces bridging, which reduces rework due to low corner pressure.

• This economical film reduces costs compared to other high-temperature films.

Property

Material Type: Multi-Layer
Elongation at Break: 400%
Tensile Strength: 45 MPa
Maximum Operating Temperature: 171°C
Flammability (Self-extinguishing): No
Materials to Avoid: Phenolic Resins/Strong Oxidizing Agents
Color: Transparent Purple

Dangerous. Observe safety precautions - For professional use only

See the different packaging

Request for quotation

Request for information

Contactez-nous par téléphone au 04 26 680 680

Name	Code article	Price	Availability	Security form
AIRTECH SECURLON® V-45 Roll 50µ x 1,52m x 305m	AT5453		Contact us	DownloadDownload the technical datasheet
AIRTECH SECURLON® V-45 Roll CF 50µ x (2 x 1,52cm) x 305m	AT5452		Contact us	DownloadDownload the technical datasheet

Name

Code article

Price

Availability

Security form

AIRTECH SECURLON® V-45

Roll 50µ x 1,52m x 305m

AT5453

DownloadDownload the technical datasheet

AIRTECH SECURLON® V-45

Roll CF 50µ x (2 x 1,52cm) x 305m

AT5452

DownloadDownload the technical datasheet

Caracteristics

Chemistry / Technology	Multi-layer
Brand	AIRTECH
Color	Purple
Elongation at break (%)	400.0000
Resin Compatibility	Bismaleimide (BMI), Cyanate Ester, Epoxy, Phenolic, Polyester / Vinylester, Polyurethane
Process Product Type	Bagging Films
Maximum temperature (°C)	171 CELSIUS
Tensile Strength (Mpa)	45 MegaPa
Thickness	50 MICROMETER
