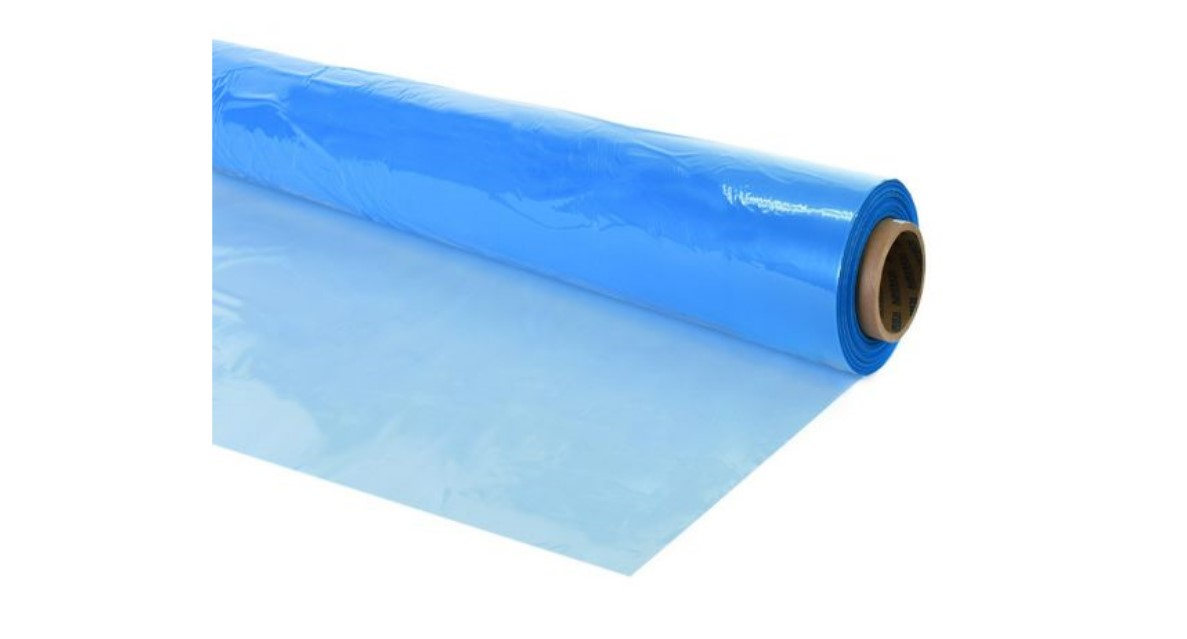

AIRTECH WRIGHTLON® WL5200B non-perforated

Applications

Airtech's Wrightlon® 5200 B (Blue) Non-Perforated is a fluoropolymer-based release film with good elongation and excellent temperature resistance (260°C). It is easy to remove and allows the manufacture of parts with complex shapes by adapting to the most complex curvatures.

Caracteristics

• Good elongation and strength reduce tearing and bridging in corners, thus reducing rework on resin-filled corners.

• Wider film widths reduce seams, allowing for faster set-up and safer manufacturing of large parts.

• Bright colors reduce the risk of film remaining on demolded parts or confusion between different perforations in the same workshop.

Property

Material Type: Ethylene Tetrafluoroethylene (ETFE)

Elongation at Break: 350%

Tensile Strength: 48 MPa

Maximum Operating Temperature: 260°C

Materials to Avoid: Compatible with most resins

Available Colors: Blue, Red, Clear, Yellow

Dangerous. Observe safety precautions - For professional use only

See the different packaging

Request for quotation

Request for information

Contactez-nous par téléphone au 04 26 680 680

Variations

This product is not available online.Contact us

Name	Code article
AIRTECH WRIGHTLON® WL5200B non-perforated Roll 25µ x 1,22m x 183m	AT18073	Contact us
AIRTECH WRIGHTLON® WL5200B non-perforated Rouleau 50µ x 1,22m x 91,4m	AT527111	Contact us
AIRTECH WRIGHTLON® WL5200B non-perforated Roll 20µ x 1,52m x 183m	AT18074	Contact us
AIRTECH WRIGHTLON® WL5200B non-perforated Roll 25µ x 1,52m x 183m	AT18075	Contact us

Caracteristics

Chemistry / Technology	Ethylene tetrafluoroethylene
Brand	AIRTECH
Color	Blue
Elongation at break (%)	350.0000
Drapability	High
Resin Compatibility	Bismaleimide (BMI), Cyanate Ester, Epoxy, Phenolic, Polyester / Vinylester, Polyurethane
Process Product Type	Release Film
Maximum temperature (°C)	260 CELSIUS
Tensile Strength (Mpa)	48 MegaPa
Thickness	20 MICROMETER
