AIRTECH WRIGHTLON® WL8400 SHT

Applications

The Wrightlon 8400 of Airtech is a high-temperature nylon film for vacuum bagging, with proven performance worldwide for over 30 years. It is recommended in many aerospace specifications for operating temperatures up to 232°C (450°F). It is recommended for curing with phenolic resins.

Caracteristics

• Heat resistance ensures vacuum safety during high-temperature curing of expensive parts.

• Proven performance and approvals in accordance with global specifications obtained over more than 30 years.

• High mechanical and chemical resistance reduces bag failures with aggressive phenolic resins.

Property

Material type : Nylon

Elongation at break : 350%

Tensile strength : 62 MPa

Maximum use temperature : 232°C

Flammability (self extinguishing) Yes

Materials to avoid : Strong oxidizers

Color : Blue

Dangerous. Observe safety precautions - For professional use only

See the different packaging

Request for quotation

Request for information

Contactez-nous par téléphone au 04 26 680 680

Variations

This product is not available online.Contact us

Name	Code article	Price					Availability

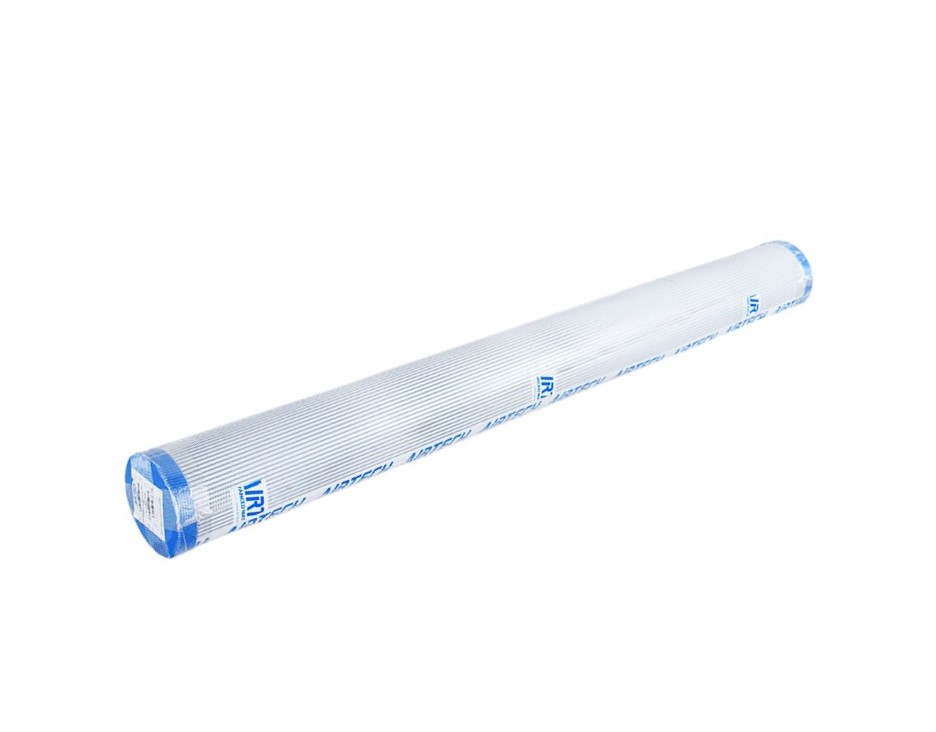

AIRTECH WRIGHTLON® WL8400 SHT Roll 75µ x 1,52m x 228m	AT18456		Contact us
AIRTECH WRIGHTLON® WL8400 SHT Roll 50µ x 1,52m x 305m	AT18454		Contact us

Caracteristics
Downloads

Caracteristics

Chemistry / Technology	Polyamid (Nylon / Aramid)
Brand	AIRTECH
Color	Blue
Elongation at break (%)	350.0000
Drapability	Low
Resin Compatibility	Epoxy, Phenolic, Polyester / Vinylester, Polyurethane
Process Product Type	Release Film
Maximum temperature (°C)	232 CELSIUS
Tensile Strength (Mpa)	62 MegaPa
Thickness	50 MICROMETER
