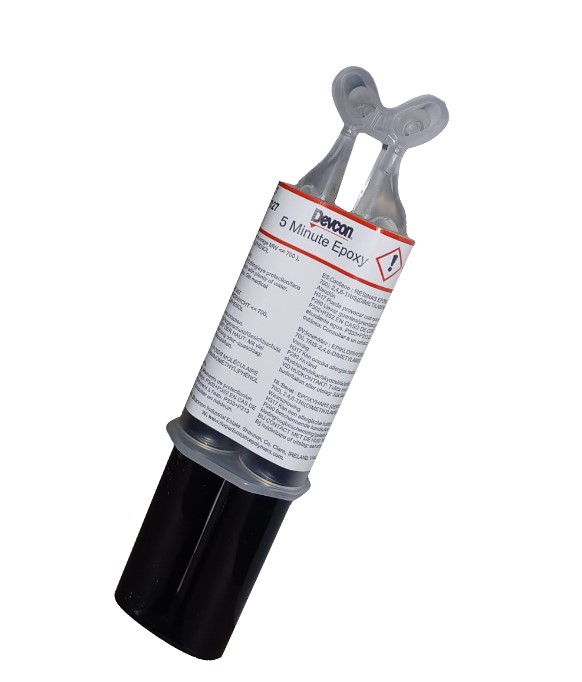

DEVCON 5MN EPOXY
En vidéo

DEVCON 5MN EPOXY

Compare
Applications
Caracteristics
  • Transparent two-component epoxy resin
  • Mixing ratio: 1:1 by volume
  • Color: Transparent / Clear
  • Working time (pot life): 4 min
  • Set time: 45 min
  • Functional cure: 2 h
  • Full cure: 24 h
  • Service temperature: -40°C to +93°C
  • Shear strength: 9.6 MPa (≈ 2250 psi)
  • Hardness: 85 Shore D
  • Dielectric strength: 490 V/mm
  • Mixed viscosity: 8,000–10,000 mPa·s
  • Mixed density: 1.10 g/cm³
  • Curing shrinkage: Very low
Property

Rapid setting

Fully cures in 12 hours to achieve maximum performance.

Multi-material bonding

Excellent mechanical strength

High hardness

Good resistance to common solvents and chemicals.

Good electrical insulation

Solvent-free, 100% reactive formulation.

Usable from -40°C to +93°C

Dangerous. Observe safety precautions - For professional use only
See the different packaging
Request for quotation
Request for information
Contactez-nous par téléphone au 04 26 680 680

Variations

This product is not available online.Contact us
Name Code article Price Availability
DEVCON 5MN EPOXY
25 ml Cartridge
DV14251 Contact us

Caracteristics

Viscosity Class Liquid
Application Methode Manual
Curing Type Room Temperature Curing
Density 1.1 kg_m3
Chemistry / Technology Epoxy
Brand DEVCON
Color Clear
Mix Ratio 1/1
Hardness Class Hard (Shore A81 - A100 / Shore D35 - D55)
Hardness 85 Dshore
Elongation at break (%) 1.0000
Number of Component Bi Componant / 2 Parts
Maximum temperature (°C) 93 CELSIUS
Minimum temperature (°C) -40 CELSIUS
Tensile Strength (Mpa) 9.6 MegaPa
Dynamic Viscosity (25°C) 10000 mPas
