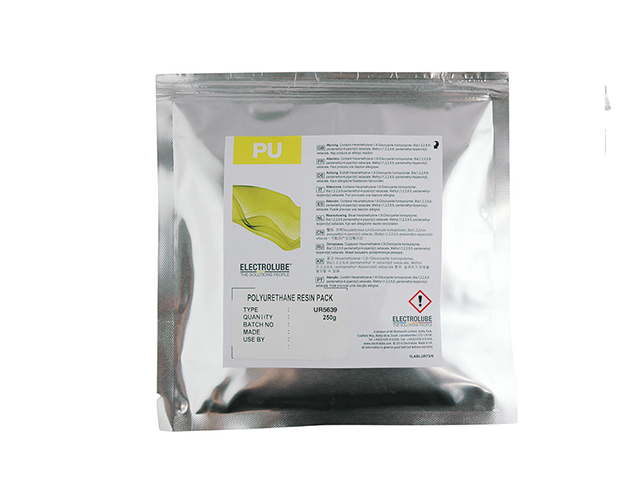

ELECTROLUBE UR5639

Compare
SKU: ELUR56390
Applications
Soft optically clear polyurethane resin ideal for use in protective LED applications.
Caracteristics
2 part / Viscosity : 1300 mPa.s / Hardness : Shore A55 / Temperature range : -40 to +120°C / Refractive index 1.487 / 24h at 23°C or 4h at 60°C
Property
Polyurethane encapsulation resin / Optically clear / low viscosity / Water & UV resistance / Does not contain IPDI
Dangereux. Respecter les précautions d'emplois
See the different packaging

Variations

This product is not available online.Contact us
Name Code article Price Availability
ELECTROLUBE UR5639
5 kg Kit
ELUR5639K5K Contact us
ELECTROLUBE UR5639
250 gr Bag
ELUR5639RP250 Contact us

Caracteristics

Application Methode Automatic, Manual
Curing Temperature (°C) 23 CELSIUS
Curing Time (min) 24 HOUR
Curing Type Room Temperature Curing
Chemistry / Technology Polyurethane
Dielectric Strength (kV/mm) 11 kV_mm
Brand ELECTROLUBE
Color Clear
Product's associated market Electronics
Hardness Class Medium Hard (Shore A61 - A80)
Hardness 55 Ashore
Electric Properties Electrically Insulating
Number of Component Bi Componant / 2 Parts
Price Unit Pieces
Maximum temperature (°C) 120 CELSIUS
Minimum temperature (°C) -40 CELSIUS
Thermal Conductivity (W/m⋅K) 0.3 WmK
Dynamic Viscosity (25°C) 2000 mPas
