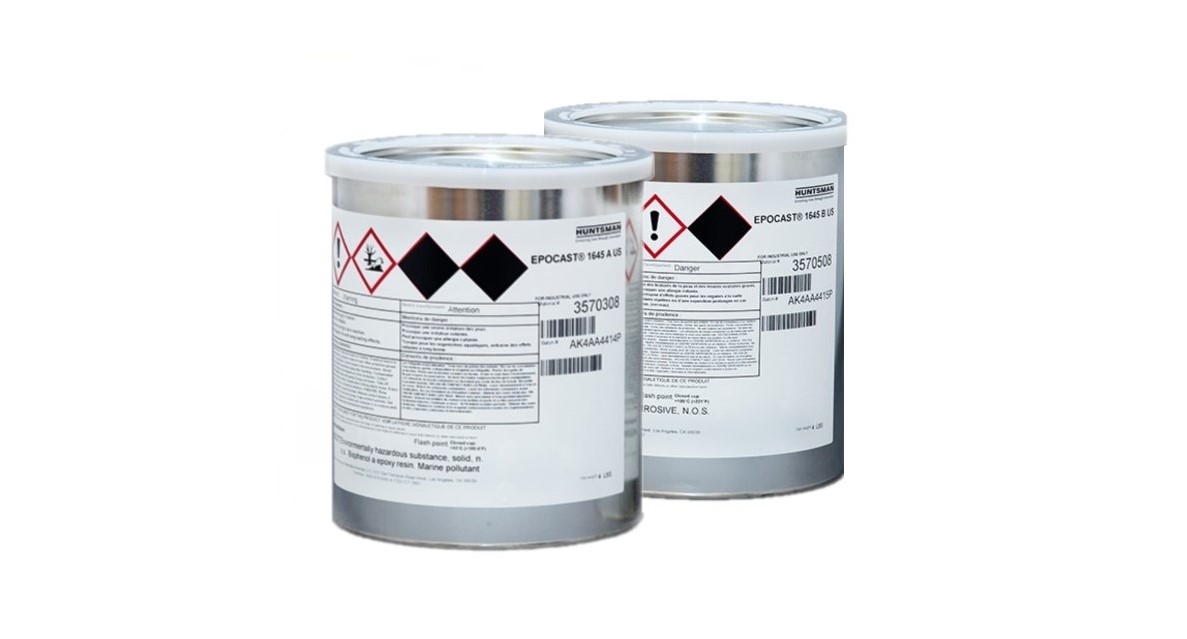

EPOCAST 1645 FR A/B

Compare
SKU: HU1645F00
Applications
Huntsman EPOCAST 1645 FR A / B is a very low density syntactic paste (0.45 - 0.48). It is used for edging, densification or structural reinforcement sandwich panels. Intended for aeronautical applications, the EPOCAST 1645 FR A / B Meets BMS 5-28 Type 9 Requirements. Flame Retardant: Meets FAR 25.853a Requirements and is "flame retardant" Meets FAR 25.853a Requirements - SPECIF HUNTSMAN : HUN00150
Caracteristics
Color: White / Viscosity: Pasty (1645 FR A: Pasty -1645 FR B: Pasty) / Density: 0,45 - 0,48 / Gel-Time: 65 min (at 25°C) / Sandable time : 10g 4-5h ; 100g 70-80h / Self-extinguishing time (12s vertical) FAR 25.853 : < 2s / Compressive module: 190 KPa at 23°C / Compressive stregth : 19,7MPa à 23°C / Insert pull-out strength : 1,8kN / lap shear strength: 7,9 MPa at 23°C (afters 3h curing at 52°C).
Property
Both parts A and B of the Huntsman EPOCAST 1645 FR are neither sticky nor messy; they are easily mixed by hand and cleaned with water after use. With a mixing ratio of 1/1, the EPOCAST 1645 FR A / B quickly takes up to room temperature and sands easily.
Dangereux. Respecter les précautions d'emplois
See the different packaging

Variations

This product is not available online.Contact us
Name Code article Price Availability
EPOCAST 1645 FR A/B
Kit 38 Lb (1 x 19Lbs G-A) + (1x 19Lbs G-B)
HU5563 Contact us

Caracteristics

Viscosity Class Pasty / Putty
Application Methode Dispensing, Manual
Curing Type Room Temperature Curing
Certification / Specification BMS 5-28, Type 9, FAR 25.853
Density 0.45 kg_l
Chemistry / Technology Epoxy
Brand EPOCAST
Color Light Brown
Product's associated market Aeronautics
Compression Strength (MPa) 19.7 MegaPa
Mix Ratio 1/1
Hardness Class Very Hard (Shore D56 - D100)
Hardness 58 Dshore
Markets - Where is used the product ? Aeronautics Interior Adhesives / Sealant, Aeronautics Outside Adhésives / Sealant
Number of Component Bi Componant / 2 Parts
Price Unit Pieces
Minimum temperature (°C) 18 CELSIUS
Tensile Strength (Mpa) 7.6 MegaPa
Glass transition (Tg) (°C) 122 CELSIUS
