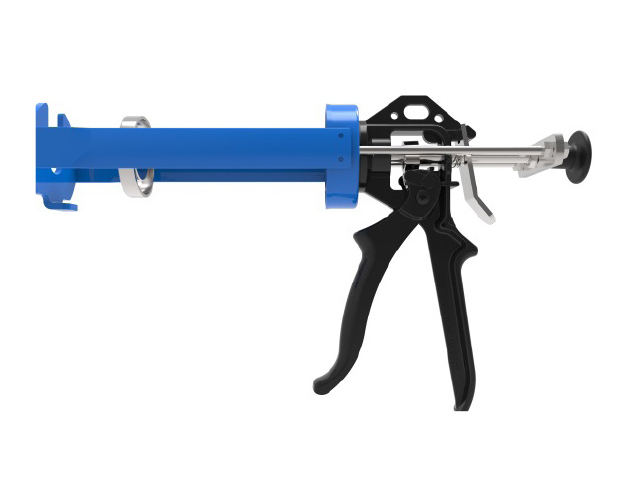

10:1 RATIO 380 ml CARTRIDGE – PC COX CCM 380/10 MANUAL GUN

Compare
Applications

The COX CCM 380 is a manual 2-component dispenser for 380 mL cartridges in a 10:1 mix ratio. It delivers up to 3.5 kN thrust via an 18:1 mechanical advantage, with an epoxy-coated steel frame and epoxy-coated aluminium handle in a compact 1.1 kg package—built for medium to high-viscosity materials.

    • Precise dispensing of two-component adhesives and sealants in 380 mL, 10:1 cartridges (beads, bonding, sealing, repair).
    • Suited to workshop and on-site use where repeatable, controlled flow is required on medium/high viscosities.
  • Caracteristics

    COX CCM 380 characteristics for 380 mL, 10:1 cartridges.

    • Cartridge capacity: 380 mL (13.4 oz)
    • Mix ratio: 10:1 (CCM 380 platform also available in 1:1, 2:1, 5:1)
    • Maximum thrust: 3.5 kN (≈ 787 lbf)
    • Mechanical advantage: 18:1
    • Weight: 1.1 kg (2.3 lb)
    • Cartridge holder length: 181 mm (7.1 in)
    • Handle material: epoxy-coated aluminium; frame: epoxy-coated steel
    • Viscosity target: medium / high
    • Approvals: REACH (tool component)
    • Standard colour: black/blue
    Property

    COX CCM 380 properties that support consistent, high-force dispensing.

    • High drive force with control: the 18:1 gear train provides up to 3.5 kN for tougher, higher-viscosity mixes.
    • Durable construction: epoxy-coated steel frame and epoxy-coated aluminium handle for long service life.
    • Compact form factor: 181 mm holder length and 1.1 kg weight to aid handling and repeat work.
    • Regulatory fit: REACH-listed tool components to help meet site requirements.
    Dangerous. Observe safety precautions - For professional use only
    See the different packaging

    Variations

    This product is not available online.Contact us
    Name Code article Price Availability
    10:1 RATIO 380 ml CARTRIDGE - PC COX CCM 380/10 MANUAL GUN
    Each
    DSS1015 Contact us
