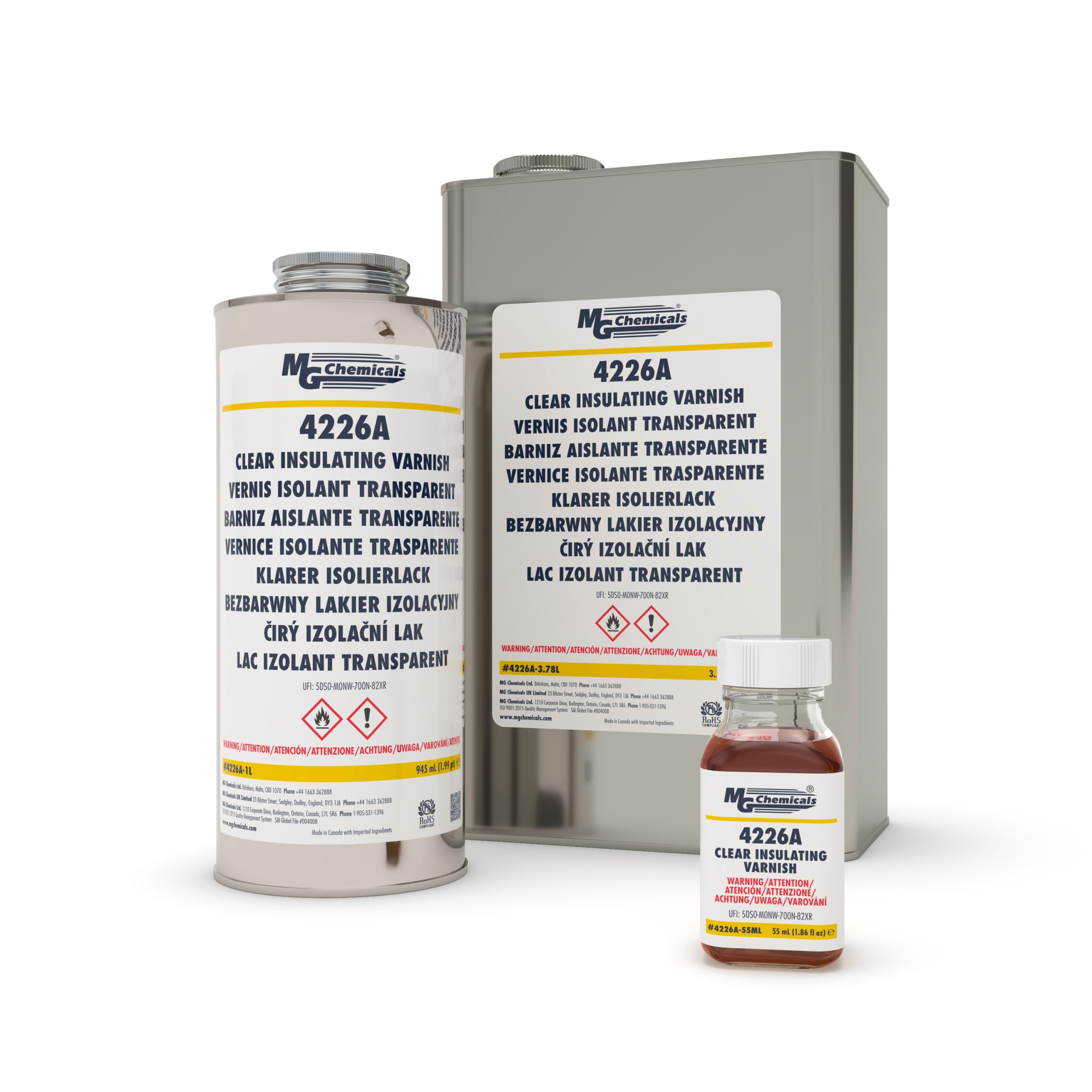

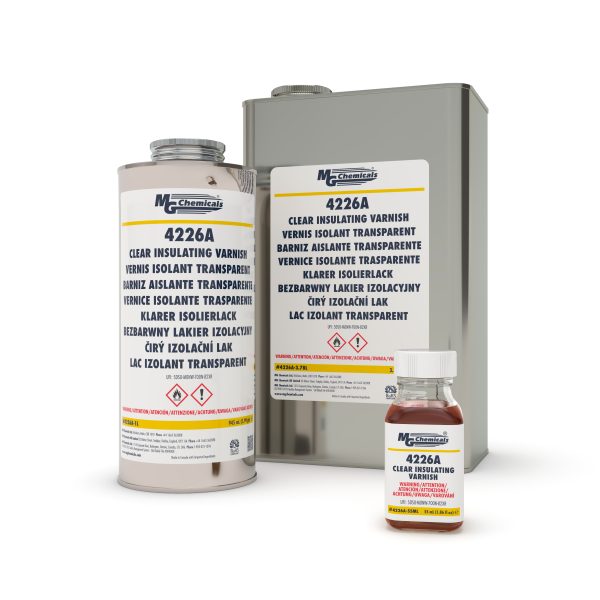

MG CHEMICALS 4226A Liquid

Compare
Applications
MG CHEMICALS 4226A Liquid is a high voltage insulating varnish used for: Insulating transformers, coils, motor windings, and various parts of electrical generators against arcing and corona effect / Protecting these components against corrosion and moisture / Replacing heat shrink tubing or electrical insulating tape / Insulating electrical generators.
Caracteristics
Dielectric strength: 48.8 kV/mm / Service temperature: -30 to 180 °C / Touch dry time: 10 min / Time between coats: 5 minutes / Recommended film thickness: 12-24 μm / Viscosity at 25 ˚C: 50 cP / Density: 0.96 g/mL
Property
MG CHEMICALS 4226A Liquid is a single-component varnish / Low viscosity / Color: Transparent / Glossy finish / Excellent adhesion on many substrates / Resistant to transformer oil / Low VOC content and free of HAPs (hazardous air pollutants) / Does not contain toluene, xylene, or methyl ethyl ketone (MEK)
Dangerous. Observe safety precautions - For professional use only
See the different packaging
Request for quotation
Request for information
Contactez-nous par téléphone au 04 26 680 680

Variations

This product is not available online.Contact us
Name Code article Price Availability
MG CHEMICALS 4226A Liquid
1 Gallon Can
MG4226030 Contact us
MG CHEMICALS 4226A Liquid
18,9 l Drum
MG4226040 Contact us
MG CHEMICALS 4226A Liquid
1 L Bottle
MG4226020 Contact us

Caracteristics

Application Methode Manual
Curing Type Room Temperature Curing
Dielectric Strength (kV/mm) 118 kV_mm
Brand MG CHEMICALS
Color Clear
Number of Component Mono Componant / 1 Part
Dynamic Viscosity (25°C) 50 mPas
