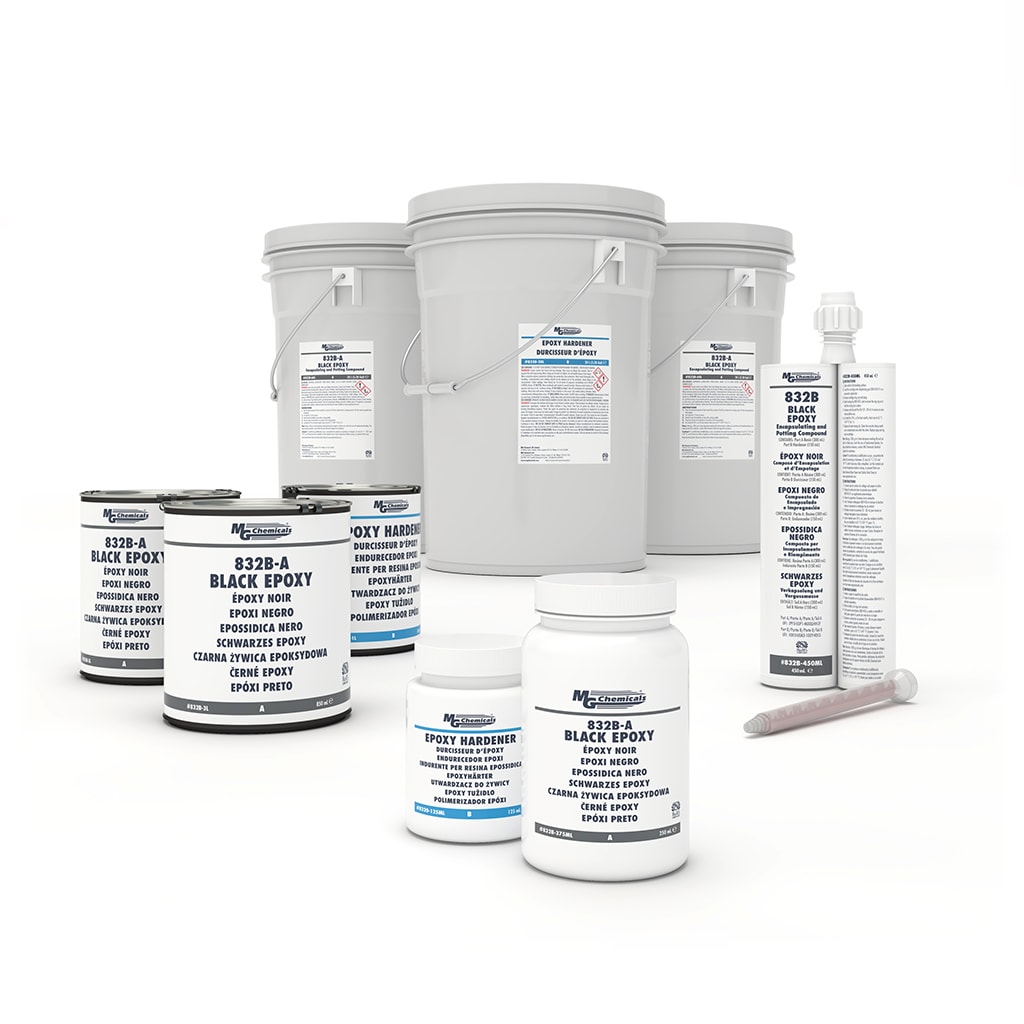

MG CHEMICALS 832B

Compare
Applications
MG CHEMICALS 832B is a black, rigid epoxy resin dedicated to: the encapsulation of electronic modules. The environmental, mechanical, and physical protection of printed circuit boards and electronic assemblies. The encapsulation and coating of electronic components. Electrical insulation and protection against static discharges. Protection against vibrations, abrasion, and thermal shocks.
Caracteristics
Two-component epoxy / Color: Black / Ratio: 2:1 / Temperature range: -40°C to +140°C
Property
MG CHEMICALS 832B has the following properties: Low viscosity allowing easy penetration into small spaces / Excellent electrical insulator / Extreme resistance to water and moisture (allows immersion if necessary) / Strong resistance to compression and tension / Excellent adhesion on a wide variety of substrates (metals, composites, glass, ceramics, many plastics)
Dangerous. Observe safety precautions - For professional use only
See the different packaging
Request for quotation
Request for information
Contactez-nous par téléphone au 04 26 680 680

Variations

This product is not available online.Contact us
Name Code article Price Availability
MG CHEMICALS 832B
450ml Cartridge
MG832B020 Contact us
MG CHEMICALS 832B
60L Kit
MG832B040 Contact us
MG CHEMICALS 832B
3L Kit
MG832B010 Contact us

Caracteristics

Curing Temperature (°C) 65 CELSIUS
Curing Time (min) 60 MINUTE
Curing Type Hot Curing
Chemistry / Technology Epoxy
Dielectric Strength (kV/mm) 18 kV_mm
Brand MG CHEMICALS
Color Black
Mix Ratio 2/1
Hardness Class Very Hard (Shore D56 - D100)
Hardness 80 Dshore
Electric Properties Electrically Insulating
Number of Component Bi Componant / 2 Parts
Maximum temperature (°C) 140 CELSIUS
Minimum temperature (°C) -40 CELSIUS
Glass transition (Tg) (°C) 49 CELSIUS
Thermal Conductivity (W/m⋅K) 0.3 WmK
Dynamic Viscosity (25°C) 3300 mPas
