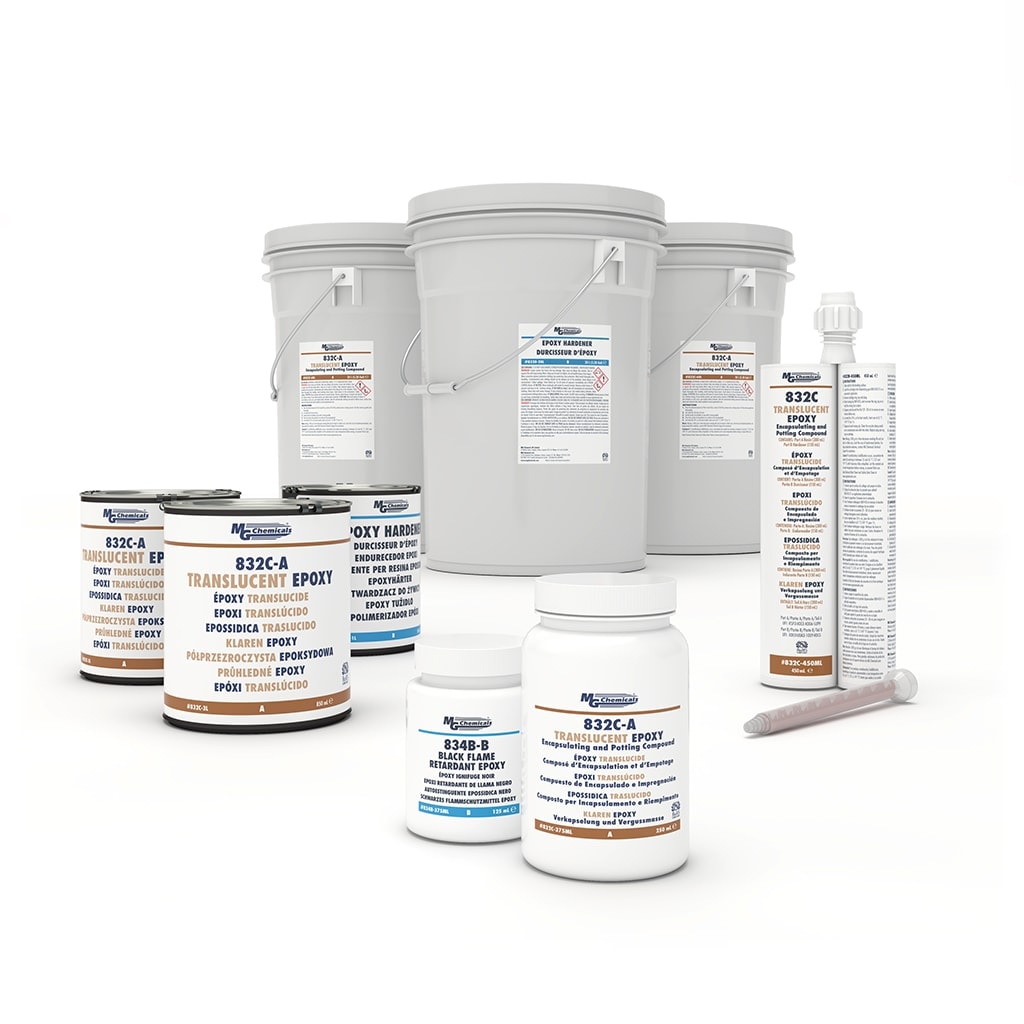

MG CHEMICALS 832C

Compare
Applications
MG Chemicals 832 C is a translucent amber epoxy resin designed for: extreme protection (harsh environments) of printed circuit boards and electronic assemblies. Applications requiring visual inspection. The encapsulation of electronic components.
Caracteristics
Epoxy / Two-component / Viscosity 2700mPa.s / Shore hardness D84 / Volume ratio 2:1 / Translucent amber color / Dielectric strength 19kV/mm / Working time 1h / Curing in 24h at room temperature or can be accelerated with heat 1h @ 65°C 30 min @ 80°C 15 min @ 100°C
Property
High rigidity / Excellent electrical insulation / Resistance to static discharges / Protection against vibrations and abrasion / Resistance to thermal shocks / Resistance to environmental humidity, saltwater, and mold as well as many aggressive chemicals.
Dangerous. Observe safety precautions - For professional use only
See the different packaging
Request for quotation
Request for information
Contactez-nous par téléphone au 04 26 680 680

Variations

This product is not available online.Contact us
Name Code article Price Availability
MG CHEMICALS 832C
450ml Cartridge
MG832C020 Contact us
MG CHEMICALS 832C
60L Kit
MG832C040 Contact us
MG CHEMICALS 832C
3L Kit
MG832C010 Contact us

Caracteristics

Application Methode Dispensing, Manual
Curing Temperature (°C) 23 CELSIUS
Curing Time (min) 24 HOUR
Curing Type Room Temperature Curing
Chemistry / Technology Epoxy
Dielectric Strength (kV/mm) 19 kV_mm
Brand MG CHEMICALS
Color Clear
Mix Ratio 2/1
Hardness Class Very Hard (Shore D56 - D100)
Hardness 84 Dshore
Electric Properties Electrically Insulating
Multi parts product type system / Multiparts
Number of Component Bi Componant / 2 Parts
Maximum temperature (°C) 140 CELSIUS
Minimum temperature (°C) -40 CELSIUS
Glass transition (Tg) (°C) 53 CELSIUS
Thermal Conductivity (W/m⋅K) 0.3 WmK
Dynamic Viscosity (25°C) 2700 mPas
