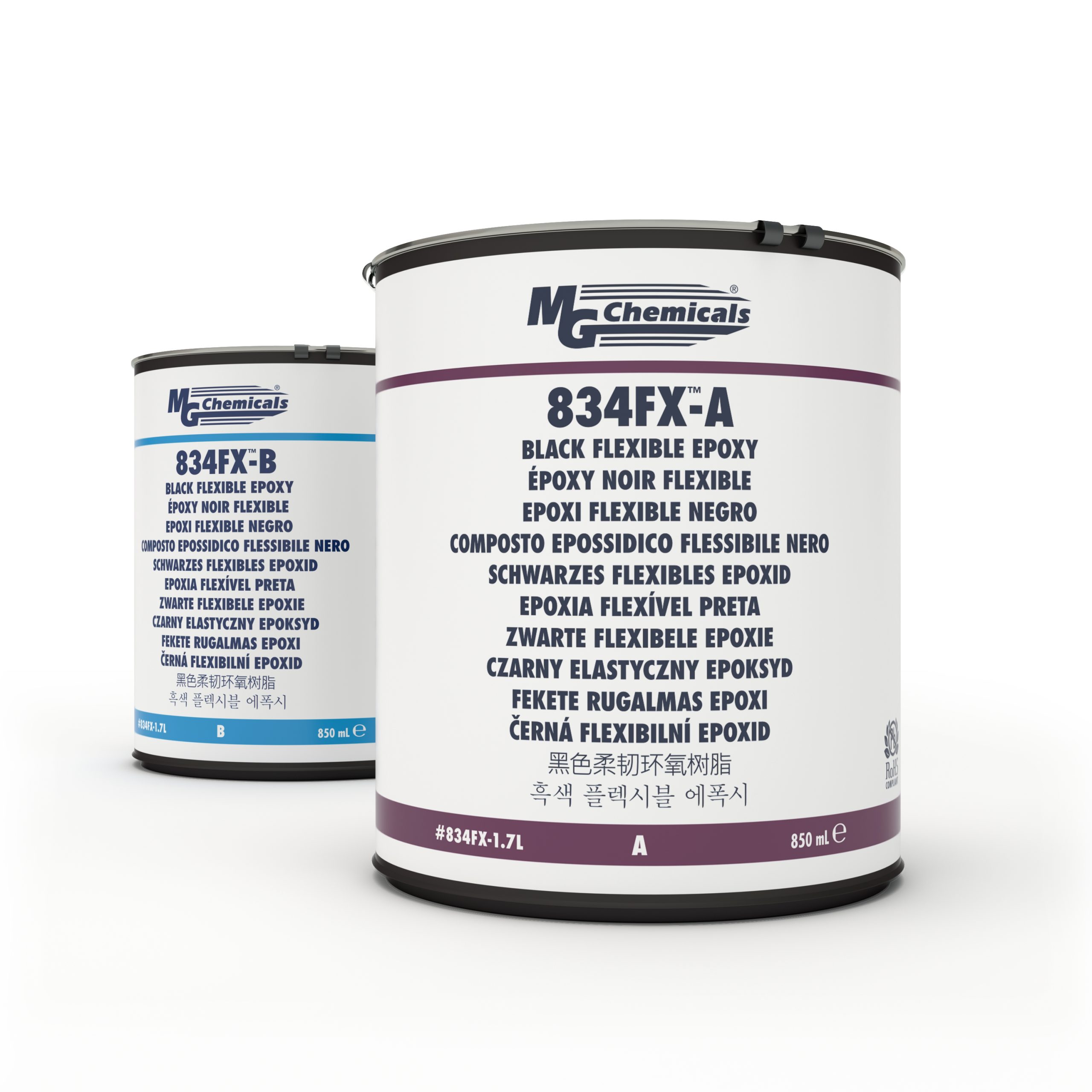

MG CHEMICALS 834FX

Compare
Applications
MC CHEMICALS 834 FX is a flexible black epoxy resin dedicated to applications for the protection of electronic assemblies, protection against moisture, vibrations, and thermal shocks, electrical insulation and protection against static discharges, and thermal dissipation around batteries and modules.
Caracteristics
MG CHEMICALS 834 FX is an epoxy resin / Two-component / Color: Black / Ratio: 1:1 / Viscosity at 25 °C: 1,500 mPa.s / Density: 1.63 g/cm³ / Thermal conductivity: 0.61 W/(m·K)
Property
MG CHEMICALS 834 FX is a two-component epoxy resin compliant with UL 94 V0, effectively adhering to metals, composites, glass, ceramics, and many plastics. With excellent electrical insulation, MC CHEMICALS 834 FX protects against electrostatic discharges and short circuits. It has very good thermal conductivity and high flexibility.
Dangerous. Observe safety precautions - For professional use only
See the different packaging
Request for quotation
Request for information
Contactez-nous par téléphone au 04 26 680 680

Variations

This product is not available online.Contact us
Name Code article Price Availability
MG CHEMICALS 834FX
1,7L Kit
MG834F010 Contact us

Caracteristics

Curing Temperature (°C) 65 CELSIUS
Curing Time (min) 120 MINUTE
Curing Type Hot Curing
Chemistry / Technology Epoxy
Dielectric Strength (kV/mm) 14 kV_mm
Brand MG CHEMICALS
Color Black
Hardness Class Hard (Shore A81 - A100 / Shore D35 - D55)
Hardness 88 Ashore
Electric Properties Electrically Insulating
Number of Component Bi Componant / 2 Parts
Maximum temperature (°C) 125 CELSIUS
Minimum temperature (°C) -50 CELSIUS
Glass transition (Tg) (°C) 71 CELSIUS
Thermal Conductivity (W/m⋅K) 0.6 WmK
Dynamic Viscosity (25°C) 1500 mPas
