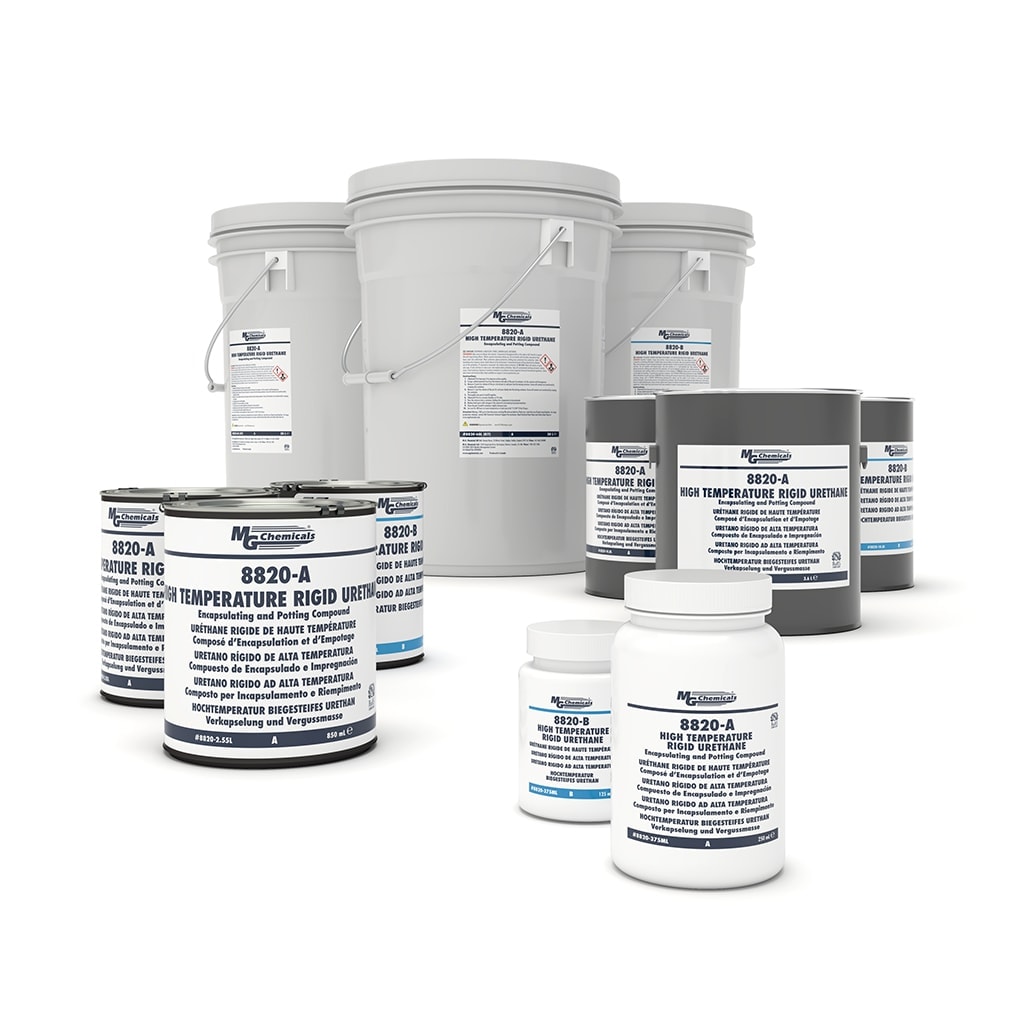

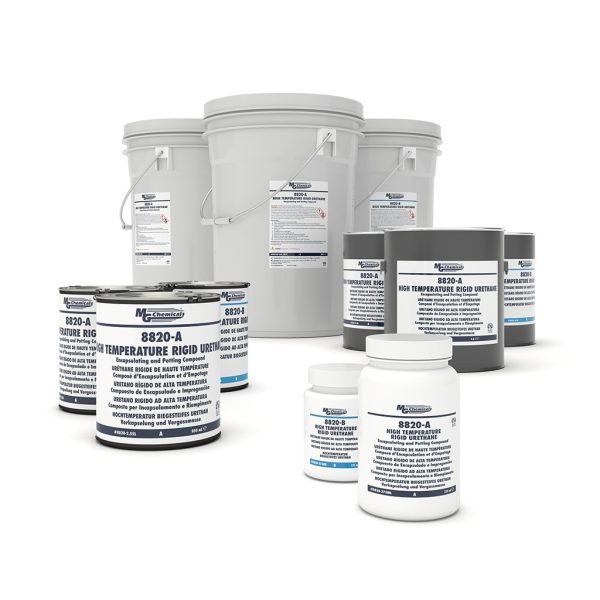

MG CHEMICALS 8820

Compare
Applications
MG CHEMICALS 8820 is a two-component black polyurethane resin designed for applications requiring robust and durable protection of electronic components. It offers exceptional stability at high and low temperatures, as well as superior resistance to chemical agents. Specifically dedicated to the potting of components, sensors, and electronic modules, the encapsulation of printed circuit boards, and electrical insulation.
Caracteristics
PU resin / Color: Black / Mixing ratio: 2:1 / Shore hardness: D73 / Dielectric strength: 13 kV/mm / Thermal conductivity: 0.3 W/m.K / Dynamic viscosity at 25°C: 3816 mPas / Service temperature range: -50°C to +150°C / Curing time: 48h at room temperature.
Property
MG CHEMICALS 8820 has excellent adhesion (metals, composites, glass, ceramics, plastics) / Low exotherm / Superior dielectric properties / Chemical resistance.
Dangerous. Observe safety precautions - For professional use only
See the different packaging
Request for quotation
Request for information
Contactez-nous par téléphone au 04 26 680 680

Variations

This product is not available online.Contact us
Name Code article Price Availability
MG CHEMICALS 8820
60L Kit
MG8820050 Contact us
MG CHEMICALS 8820
2.55L Kit
MG8820020 Contact us
MG CHEMICALS 8820
0,9 kg Kit
MG8820040 Contact us
MG CHEMICALS 8820
0,9 kg Kit
MG8820040 Contact us

Caracteristics

Curing Temperature (°C) 65 CELSIUS
Curing Time (min) 120 MINUTE
Curing Type Hot Curing
Chemistry / Technology Polyurethane
Dielectric Strength (kV/mm) 13 kV_mm
Brand MG CHEMICALS
Color Black
Mix Ratio 2/1
Hardness Class Very Hard (Shore D56 - D100)
Hardness 73 Dshore
Electric Properties Electrically Insulating
Maximum temperature (°C) 150 CELSIUS
Minimum temperature (°C) -50 CELSIUS
Glass transition (Tg) (°C) 44 CELSIUS
Thermal Conductivity (W/m⋅K) 0.3 WmK
Dynamic Viscosity (25°C) 3816 mPas
