MG CHEMICALS 9410

Compare
Applications

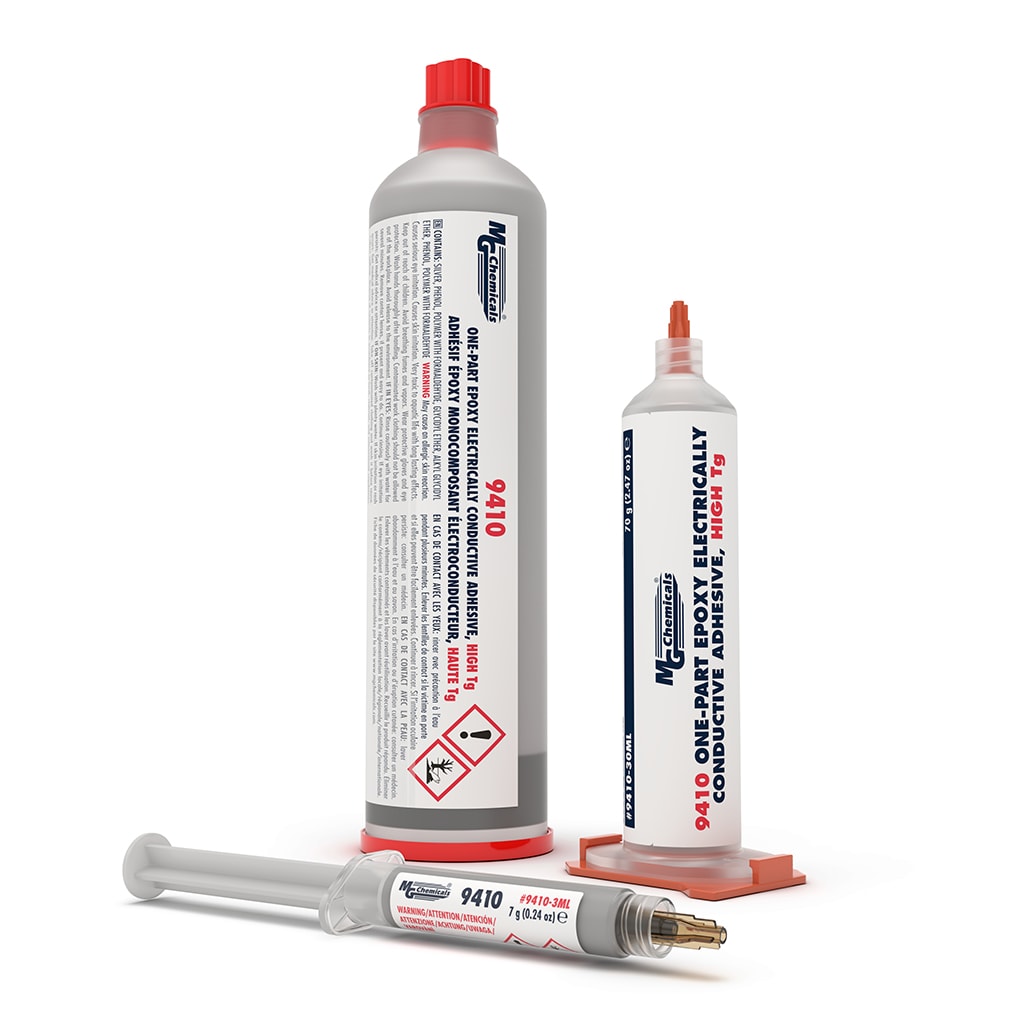

MG CHEMICALS 9410 is a single-component electrically conductive epoxy adhesive. It is dedicated to chip assembly applications, semiconductors, and small parts such as LEDs and diodes. It offers excellent EMI/RFI shielding.
Caracteristics
Epoxy / Single component / Color: Silver gray / Shore hardness 70D / Volume resistivity 1.8.10^-3 Ohm.cm / Tg: 96°C / Thermal conductivity 1.1 W/m.K / Curing time: 3h at 80°C, 1h at 90°C, 30 min at 100°C, 7 min at 150°C
Property
MG CHEMICALS 9410 has excellent electrical and thermal conductivity / Strong adhesion to most plastics and metals used in printed circuit board assemblies / Excellent chemical resistance / Excellent mechanical stability
Dangerous. Observe safety precautions - For professional use only
See the different packaging
Request for quotation
Request for information
Contactez-nous par téléphone au 04 26 680 680

Variations

This product is not available online.Contact us
Name Code article Price Availability
MG CHEMICALS 9410
30 ml Cartridge
MG9410020 Contact us
MG CHEMICALS 9410
3ml syringe
MG9410030 Contact us
MG CHEMICALS 9410
180 ml Tube
MG9410010 Contact us

Caracteristics

Curing Type Hot Curing
Chemistry / Technology Epoxy
Brand MG CHEMICALS
Electric Properties Electrically Conductive
Maximum temperature (°C) 145 CELSIUS
Minimum temperature (°C) -65 CELSIUS
Glass transition (Tg) (°C) 96 CELSIUS
Thermal Conductivity (W/m⋅K) 1.1 WmK
