PORCHER-Industries® CARBONE SERGE- 3257 196GR/m²

Compare
Applications
Porcher Industries "twill" fabrics have a drape superior to "plain" fabrics, they allow the stratification of pieces with a strong curve. The Porcher-Industries weaving quality makes it even easier to drape and impregnate fibers for wet, infusion or RTM applications. The regularity of weaving Porcher Industrie also gives them good mechanical properties and a very good visual appearance.
Caracteristics

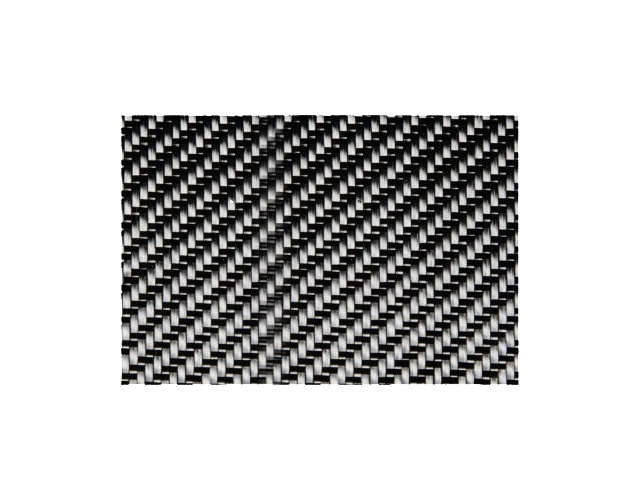

Carbone Fabrics 2/2 Twill - weight 196gr/m² (+/- 2%) - Width: 1,27m - Length: 100m - Warp/Weft (yarn/cm): 4,9 x 4,9 - Weight ratio 50/50 - Yarn : Warp: 3K HS / Weft: 3K HS
Property
Carbon fiber fabrics : Density : 1,5 - Modulus (Mpa): 45 000 - Mechanical resistance (Mpa): 700 - Specific Modulus: 30 000 - Spécific mechanical resistance: 467 - Porcher Industrie Carbon fiber fabrics is dedicated to the manufacture of high performance composite parts for the automotive, aerospace, marine, and industrial sectors.
Dangerous. Observe safety precautions - For professional use only
See the different packaging

Variations

This product is not available online.Contact us
Name Code article Price Availability
PORCHER-Industries® CARBONE SERGE- 3257 196GR/m²
Roll 1,27m x 100m
PO12764 Contact us
PORCHER-Industries® CARBONE SERGE- 3257 196GR/m²
Roll 1m x 100m
PO12765 Contact us

Caracteristics

Chemistry / Technology Carbon Fiber
Brand PORCHER
Product's associated market Marine
