PORCHER-Industries® Tissu Carbone Toile FLAT TOW – 2005 -193Gr/m²

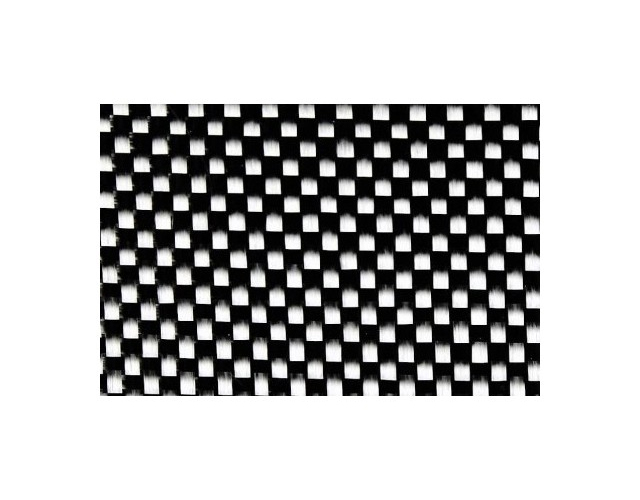

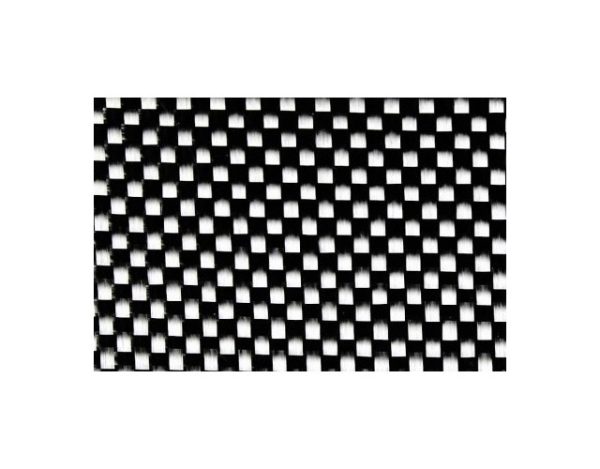

Flat-Tow Porcher Industries Carbon fabrics have a simple "checkerboard" weave woven at 90 ° and a high K (number of threads per wick). These tissues allow a low level of embossing and therefore a higher fiber content than a conventional fabric. These fabrics also offer a particular aesthetic appearance with a checkerboard wider than a classic taffeta (width of flat wicks 8.3mm)
Carbone Fabrics Flat Tow - weight 193gr/m² (+/- 2%) - Width: 1,27m - Length: 100m - Warp/Weft (yarn/cm): 1,2 x 1,2 - Weight ratio 50/50 - Yarn : Warp: 12K HS / Trame: 12K HS
Carbon fiber fabrics : Density : 1,5 - Modulus (Mpa): 45 000 - Mechanical resistance (Mpa): 700 - Specific Modulus: 30 000 - Spécific mechanical resistance: 467 - Porcher Industrie Carbon fiber fabrics is dedicated to the manufacture of high performance composite parts for the automotive, aerospace, marine, and industrial sectors.
Dangereux. Respecter les précautions d'emplois
See the different packaging


This product is not available online.Contact us
Name Code article Price Availability
PORCHER-Industries® Tissu Carbone Toile FLAT TOW - 2005 -193Gr/m²
Roll 1,27m x 100m
PO12763 Contact us


Weave Fabric
Chemistry / Technology Carbon Fiber
Grammage 193 gr_m2
Product's associated market Marine
Finish Unbleached
Markets - Where is used the product ? Marine - Composite
