PORCHER-Industries® Tissu Carbone Toile – 3607 -95Gr/m² – 1K

Compare
Applications

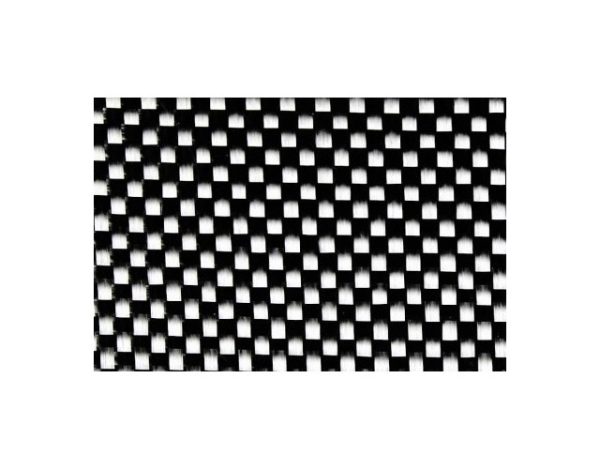

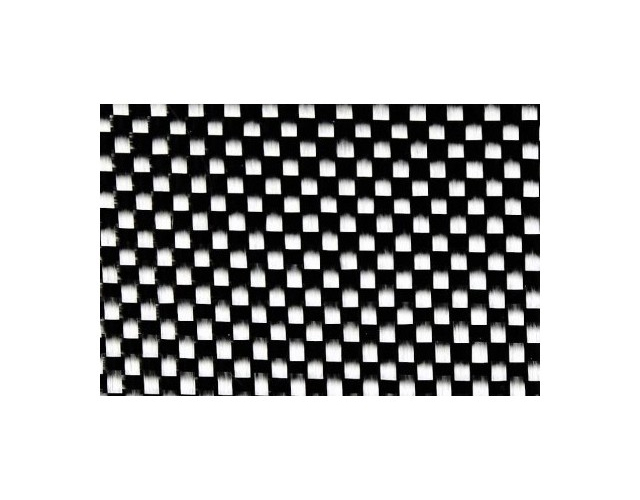

Porcher Industries Plain carbon fabrics have a simple "checkerboard" weave woven at 90 °. They have a very good dimensional stability and are generally more difficult to drape than a twill fabric and therefore mainly destined for flat or uncomplicated surfaces. The Porcher-Industries weaving quality makes it even easier to drape and impregnate fibers for wet, infusion or RTM applications. The regularity of weaving Porcher Industrie also gives them good mechanical properties and a very good visual appearance.
Caracteristics
Carbone Fabrics Plain - weight 95gr/m² (+/- 2%) - Width: 1m - Length: 52m - Warp/Weft (yarn/cm): 7 x 7 - Weight ratio 50/50 - Yarn : Warp: 1K HS / Trame: 1K HS
Property
Carbon fiber fabrics : Density : 1,5 - Modulus (Mpa): 45 000 - Mechanical resistance (Mpa): 700 - Specific Modulus: 30 000 - Spécific mechanical resistance: 467 - Porcher Industrie Carbon fiber fabrics is dedicated to the manufacture of high performance composite parts for the automotive, aerospace, marine, and industrial sectors.
Dangerous. Observe safety precautions - For professional use only
See the different packaging

Variations

This product is not available online.Contact us
Name Code article Price Availability
PORCHER-Industries® Tissu Carbone Toile - 3607 -95Gr/m² - 1K
Roll 1m x 50m
PO1243 Contact us

Caracteristics

Weave Fabric
Chemistry / Technology Carbon Fiber
Brand PORCHER
Grammage 95 gr_m2
Product's associated market Marine
Finish Unbleached
