PORCHER-Industries® Carbone – UD – 4500 300Gr

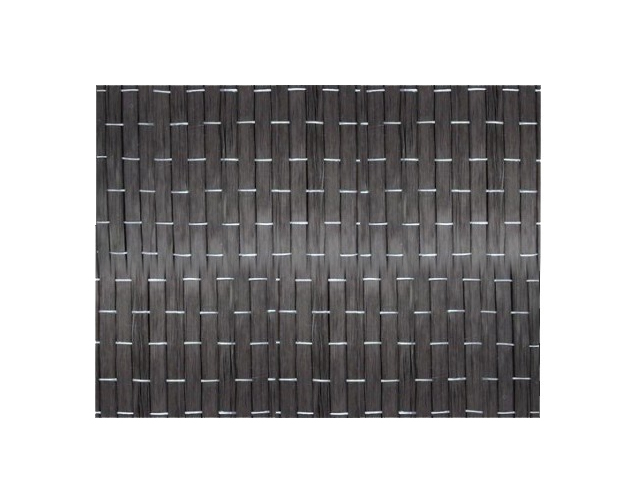

UD or Unidirectional fabrics Porcher Industries, are fabrics whose reinforcement is constituted by only parallel threads in the direction of the warp, and held together by a thin thread in the direction of the weft. UD fabrics are used for longitudinal reinforcements, generally applied in several plys, they also make it possible to optimize the placement of the reinforcements as a function of the desired axes of mechanical resistance. Their low rate of embossing pemettent a high rate of resin in the composite.
Carbone Fabrics UD - weight 300gr/m² (+/- 2%) - Width: 1m - Length: 100m - Warp/Weft (yarn/cm): 3,7 x 1,0 - Weight ratio 97,7/2,3 - Yarn : Warp: 12K HS / Weft: Hot Melt glass yarn
Carbon fiber fabrics : Density : 1,5 - Modulus (Mpa): 45 000 - Mechanical resistance (Mpa): 700 - Specific Modulus: 30 000 - Spécific mechanical resistance: 467 - Porcher Industrie Carbon fiber fabrics is dedicated to the manufacture of high performance composite parts for the automotive, aerospace, marine, and industrial sectors.
Dangerous. Observe safety precautions - For professional use only
See the different packaging


This product is not available online.Contact us
Name Code article Price Availability
PORCHER-Industries® Carbone - UD - 4500 300Gr
Roll 1m x 100m
PO12736 Contact us


Chemistry / Technology Carbon Fiber
Product's associated market Marine
