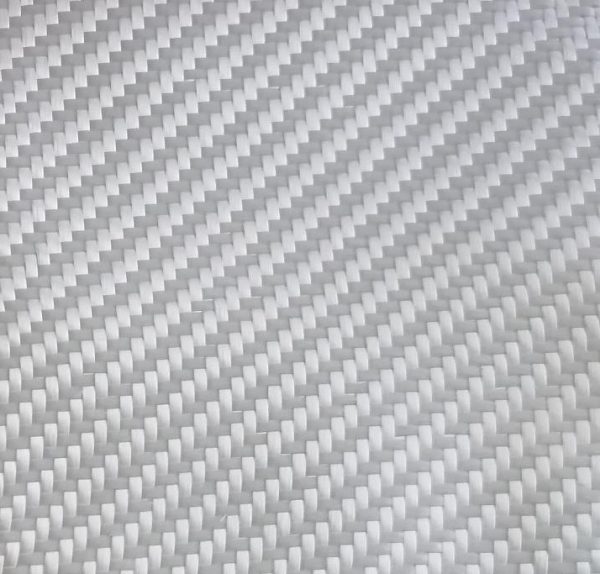

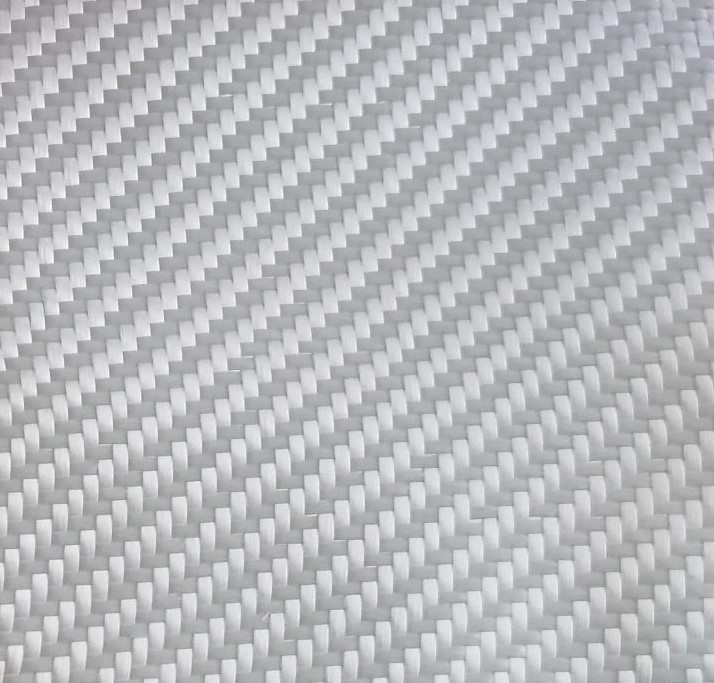

PORCHER-Industries® E Glass Fabrics – 2/2 Twill – 1989 – 391gr/m²

Compare
SKU: POE221900
Applications
Porcher Industries "twill" fabrics have a drape superior to "plain" fabrics, they allow the stratification of pieces with a strong curve. The weaving quality and finish (sizing) of the Porcher-Industries fabrics make the draping and the impregnation of the fibers even easier, as well as in the background of fabrics highly appreciated in the composite world for all applications such as the track. wet, infusion or RTM.
Caracteristiques
E Glass Fabrics - 2/2 Twill - weight 391gr/m² (+/- 2%) - Warp/Weft (yarn/cm): 6,0 x 6,6 - Weight ratio 53/47 - Yarn: Warp: EC9 68 x 5 t0/Weft: EC9 272
Propriété
E-glass fabrics : Density : 2 - Modulus (Mpa): 15000 - Mechanical resistance (Mpa): 500 - Specific Modulus : 7 500 - Spécific mechanical resistance: 250 - Porcher Industrie mechanical high-performance glass fabric E is dedicated to the manufacture of composite parts for the automotive, aerospace, marine, and industrial sectors.
Dangereux. Respecter les précautions d'emplois
See the different packaging

Variations

This product is not available online.Contact us
Name Code article Price Availability
PORCHER-Industries® E Glass Fabrics - 2/2 Twill - 1989 - 391gr/m²
Roll
PO1269 Contact us

Caracteristics

Country Of Origin France
Custom Code 70195900
Gross Weight 0.4400 KILOGRAM
Date of creation 06/07/2011
Brand PORCHER
Product's associated market Marine
Weave Twill
Chemistry / Technology Glass Fiber
Grammage 391 gr_m2
Finish Composite
Markets - Where is used the product ? Marine - Composite
