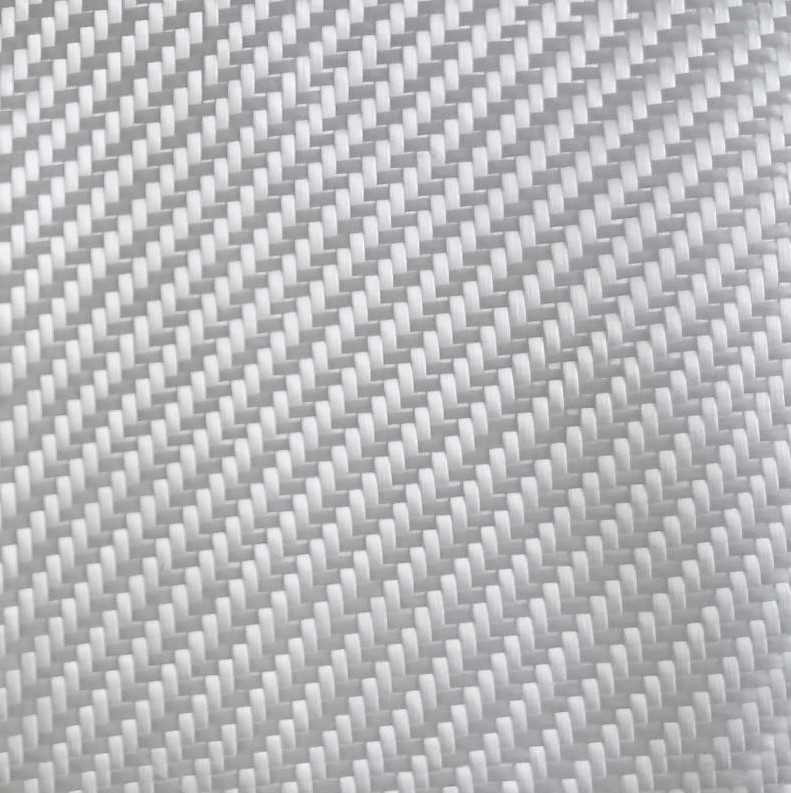

PORCHER-Industries® E Glass Fabrics – 2/2 Twill – 3063 – 282gr/m²

Compare
SKU: POE223000
Applications
Porcher Industries "twill" fabrics have a drape superior to "plain" fabrics, they allow the stratification of pieces with a strong curve. The weaving quality and finish (sizing) of the Porcher-Industries fabrics make the draping and the impregnation of the fibers even easier, as well as in the background of fabrics highly appreciated in the composite world for all applications such as the track. wet, infusion or RTM.
Caracteristiques
E Glass Fabrics - 2/2 Twill - weight 282gr/m² (+/- 2%) - Warp/Weft (yarn/cm): 7,0 x 6,5 - Weight ratio 52/48 - Yarn: Warp: EC9 68 x 3 t0/Weft: EC9 204
Propriété
E-glass fabrics : Density : 2 - Modulus (Mpa): 15000 - Mechanical resistance (Mpa): 500 - Specific Modulus : 7 500 - Spécific mechanical resistance: 250 - Porcher Industrie mechanical high-performance glass fabric E is dedicated to the manufacture of composite parts for the automotive, aerospace, marine, and industrial sectors.
Dangereux. Respecter les précautions d'emplois
See the different packaging

Variations

This product is not available online.Contact us
Name Price Availability
PORCHER-Industries® E Glass Fabrics - 2/2 Twill - 3063 - 282gr/m² ( Roll 1m x 110m) Contact us

Caracteristics

Brand PORCHER
Product's associated market Marine
Weave Twill
Chemistry / Technology Glass Fiber
Grammage 282 gr_m2
Markets - Where is used the product ? Marine - Composite
