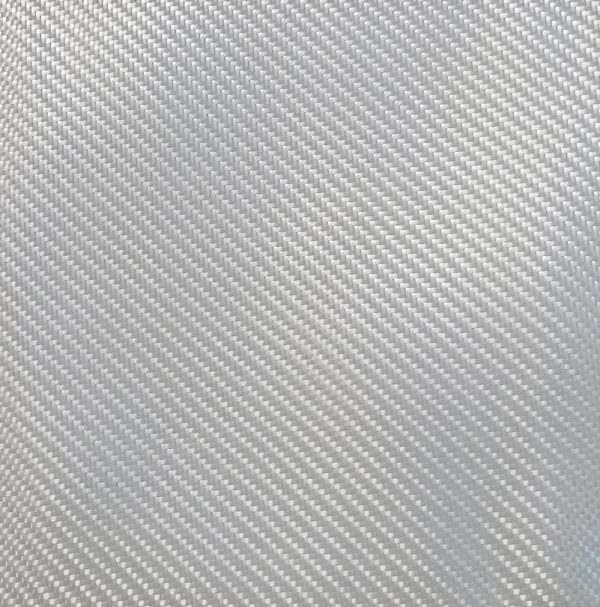

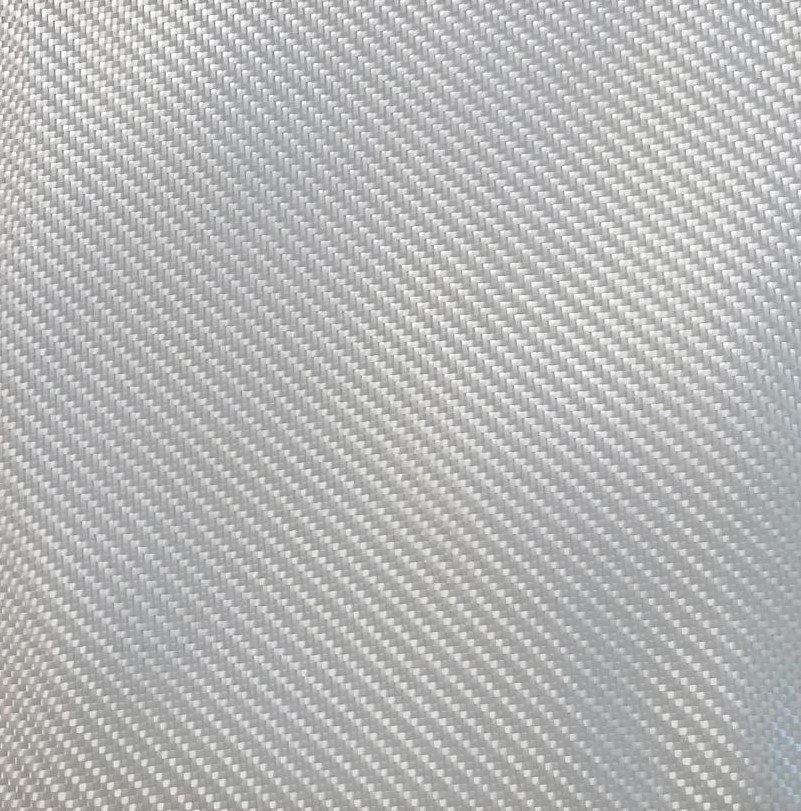

PORCHER-Industries® E Glass Fabrics – 2/2 Twill – 3423 – 193gr/m²

SKU: POE223400
Porcher Industries "twill" fabrics have a drape superior to "plain" fabrics, they allow the stratification of pieces with a strong curve. The weaving quality and finish (sizing) of the Porcher-Industries fabrics make the draping and the impregnation of the fibers even easier, as well as in the background of fabrics highly appreciated in the composite world for all applications such as the track. wet, infusion or RTM.
E Glass Fabrics - 2/2 Twill - weight 193gr/m² (+/- 2%) - Warp/Weft (yarn/cm): 14 x 14 - Weight ratio 50/50 - Yarn: Warp: EC9 68/Weft: EC9 68
E-glass fabrics : Density : 2 - Modulus (Mpa): 15000 - Mechanical resistance (Mpa): 500 - Specific Modulus : 7 500 - Spécific mechanical resistance: 250 - Porcher Industrie mechanical high-performance glass fabric E is dedicated to the manufacture of composite parts for the automotive, aerospace, marine, and industrial sectors.
Dangereux. Respecter les précautions d'emplois
See the different packaging


This product is not available online.Contact us
Name Code article Price Availability
PORCHER-Industries® E Glass Fabrics - 2/2 Twill - 3423 - 193gr/m²
Roll 1,22m x 100m
PO12713 Contact us


Weave Twill
Chemistry / Technology Glass Fiber
Grammage 193 gr_m2
Product's associated market Marine
Finish Composite
Markets - Where is used the product ? Marine - Composite
