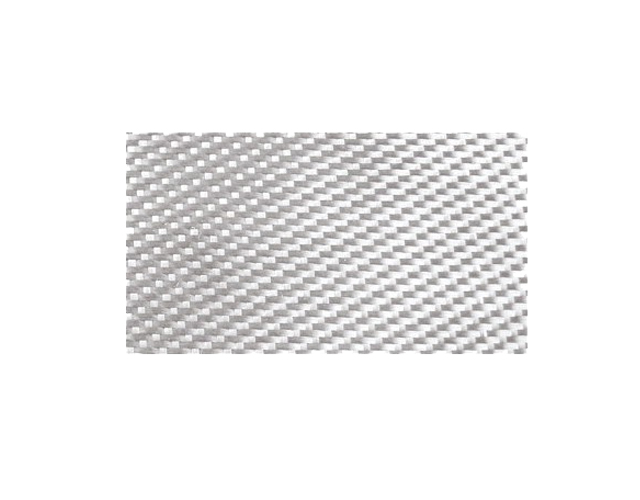

PORCHER-Industries® E Glass Fabrics – 4 H Satin – 868 – 133gr/m²

Compare
SKU: POESATI00
Applications
Porcher Industries "satin" fabrics provide the best rigidity in a laminate. They are relatively easy to draper and very flexible. They are mainly used for parts requiring high mechanical strength. The satin of 8 is the most used, especially for complex shapes.
Caracteristiques
E Glass Fabrics - Satin weaves 4 - weight 133gr/m² (+/- 2%) - Warp/Weft (yarn/cm): 5,5 x 6,3 - Weight ratio 90/10 - Yarn: Warp: EC9 136 x 5 t0/Weft: EC9 68
Propriété
E-glass fabrics : Density : 2 - Modulus (Mpa): 15000 - Mechanical resistance (Mpa): 500 - Specific Modulus : 7 500 - Spécific mechanical resistance: 250 - Porcher Industrie mechanical high-performance glass fabric E is dedicated to the manufacture of composite parts for the automotive, aerospace, marine, and industrial sectors.
Dangereux. Respecter les précautions d'emplois
See the different packaging

Variations

This product is not available online.Contact us
Name Code article Price Availability
PORCHER-Industries® E Glass Fabrics - 4 H Satin - 868 - 133gr/m²
Roll 1m x 100m
PO12725B Contact us

Caracteristics

Country Of Origin France
Custom Code 70195200
Date of creation 01/01/2007
Brand PORCHER
Chemistry / Technology Glass Fiber
