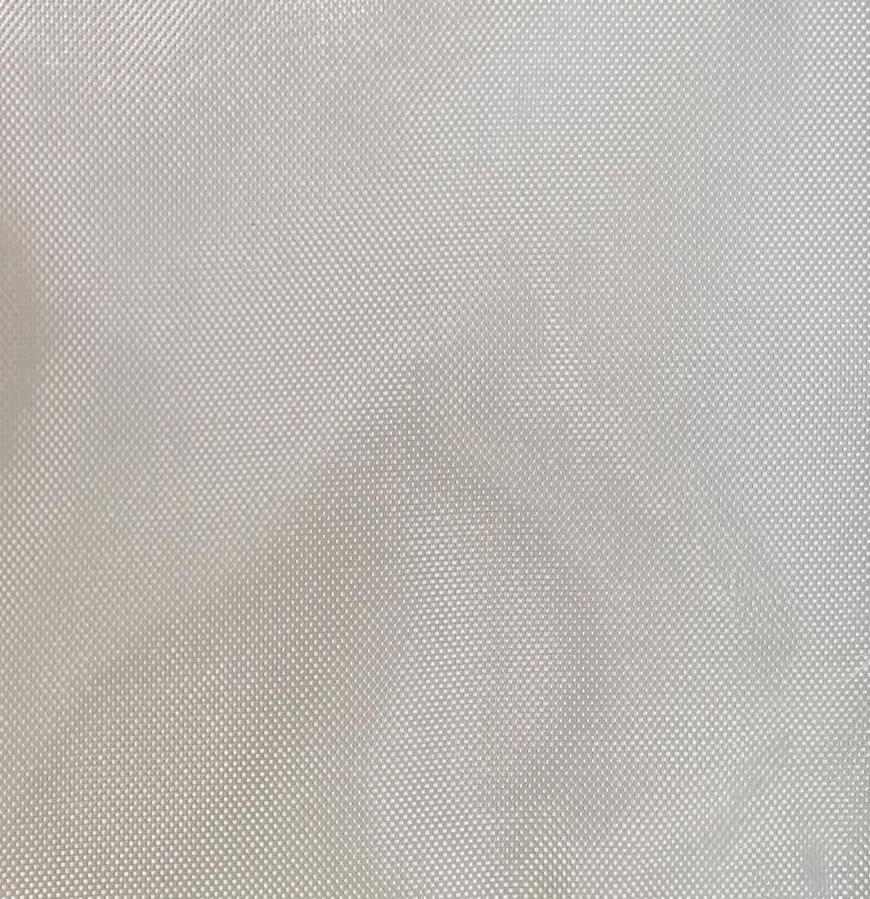

PORCHER-Industries® E Glass Fabrics – Plain- 1080 – 48Gr/m²

Porcher Industries Plain glass fabrics have a simple "checkerboard" weave woven at 90 °. They are generally more difficult to drape than a twill fabric and therefore mainly destined for flat or uncomplicated surfaces. Porcher-Industries's weaving quality and finish (or sizing) make it even easier to drape and impregnate fibers for wet, infusion or RTM applications. They have good dimensional stability. The finesse of the weaving Porcher Industrie gives them reproducible mechanical properties pieces after pieces.
E Glass Fabrics - Plain - weight 48gr/m² (+/- 2%) - Warp/Weft (yarn/cm): 23,6 x 18,6 - Weight ratio 56/44 - Yarn: Warp: EC5 11 /Weft: EC5 11
E-glass fabrics : Density : 2 - Modulus (Mpa): 15000 - Mechanical resistance (Mpa): 500 - Specific Modulus : 7 500 - Spécific mechanical resistance: 250 - Porcher Industrie mechanical high-performance glass fabric E is dedicated to the manufacture of composite parts for the automotive, aerospace, marine, and industrial sectors.
Dangerous. Observe safety precautions - For professional use only
See the different packaging


This product is not available online.Contact us
Name Code article Price Availability
PORCHER-Industries® E Glass Fabrics - Plain- 1080 - 48Gr/m²
Roll 1,27m x 100m
PO12727 Contact us


Chemistry / Technology Glass Fiber
Product's associated market Marine
