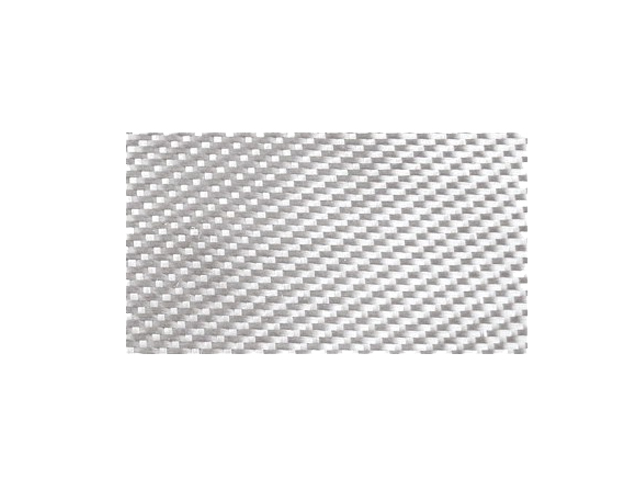

PORCHER-Industries® S2 Glass Fabrics – 8 H Satin – 6781 – 300gr/m²

Compare
SKU: POS2Sat00
Applications
Porcher Industries "satin" fabrics provide the best rigidity in a laminate. They are relatively easy to draper and very flexible. They are mainly used for part needs requiring great resistance. The stain of 8 is the most used, especially for complex shapes. "S2 Glass" fibers are very high modulus fibers, for even greater rigidity than E-Glass satin fabrics
Caracteristiques
E Glass Fabrics - Satin weaves 8 - weight 300gr/m² (+/- 2%) - Warp/Weft (yarn/cm): 22,4 x 21,2 - Weight ratio 52/48 - Yarn: Warp: SC9 66 /Weft: SC9 66
Propriété
S-glass fabrics : Density : 2 - Modulus (Mpa): 15000 - Mechanical resistance (Mpa): 500 - Specific Modulus : 7 500 - Spécific mechanical resistance: 250 - Porcher Industrie mechanical high-performance glass fabric E is dedicated to the manufacture of composite parts for the automotive, aerospace, marine, and industrial sectors.
Dangereux. Respecter les précautions d'emplois
See the different packaging

Variations

This product is not available online.Contact us
Name Code article Price Availability
PORCHER-Industries® S2 Glass Fabrics - 8 H Satin - 6781 - 300gr/m²
Roll 1,27m x 100m
PO5320 Contact us

Caracteristics

Country Of Origin France
Custom Code 70195200
Gross Weight 490.0000 KILOGRAM
Date of creation 19/01/2012
Brand PORCHER
Weave Satin 8
Chemistry / Technology Glass Fiber
Grammage 300 gr_m2
Finish Composite
