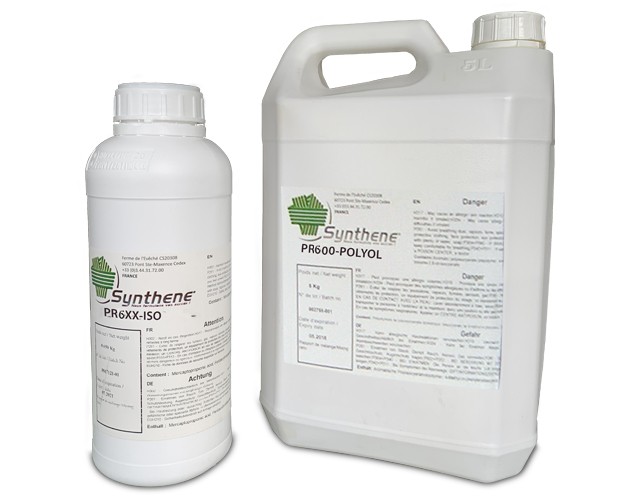

SYSTEME : SYNTHENE PR 600 Polyol / PR 6XX ISO

Synthene’s PR600 is a filled polyurethane casting resin designed for vacuum casting parts that mimic materials such as PA, PC, or ABS. It offers excellent mechanical properties, temperature resistance, and impact strength.

Synthene’s PR600 is a transparent, slightly yellow material that is easy to color; it flows well in silicone molds and allows for a short demolding time.

Synthene’s PR600 is REACH-compliant and meets the requirements of European directives.

• Rapport : 100/100
• Couleur: transparent-ambré
• Viscosité : environ 1000 mPa.s
• Durée de vie en pot : 7-8 min
• Temps de démoulage à 70°C : 40 min
• Simulation de : PP, PEHD
• HDT : 83°C
• Durée : 70 ShD
• Module d'élasticité en flexion : 590 Mpa
• Résistance au choc Charpy (ISO 179-1/1fUc : 2010) : 24 kJ/m².

The part can be demolded after:

• 50 to 60 minutes at 70 °C, depending on the thickness of the part.

To achieve the mechanical properties of the product, a complete curing cycle — including demolding time — is necessary:

• Minimum curing time: 1 hour at 70 °C + 24 hours at room temperature

• Optimal curing time: 2 hours at 70 °C + 2 hours at 100 °C + 24 hours at room temperature
